Procedures

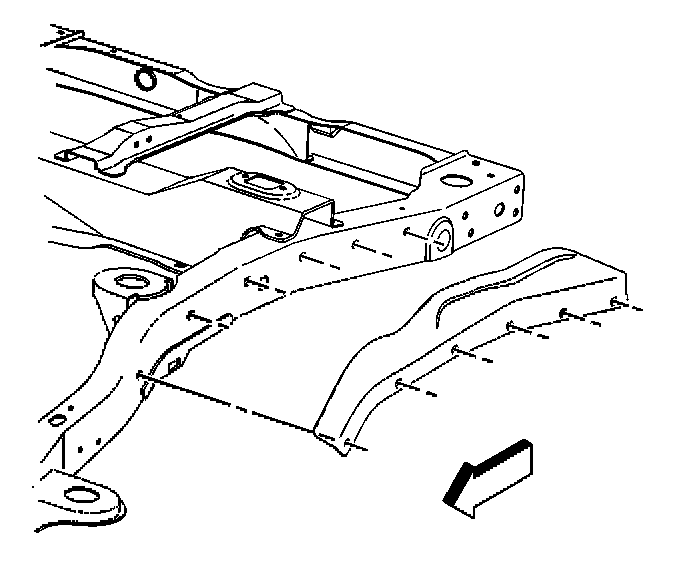

SIGHT SHIELD REPLACEMENT - REAR WHEELHOUSE PANEL

REMOVAL PROCEDURE




1. Remove the push-pins retaining the sight shield to the vehicle frame.
2. Remove the sight shield.

INSTALLATION PROCEDURE




1. Position the sight shield on the vehicle frame.
2. Install the push-pin retainers through the sight shield into the frame.
