Automatic Transmission/Transaxle
>>

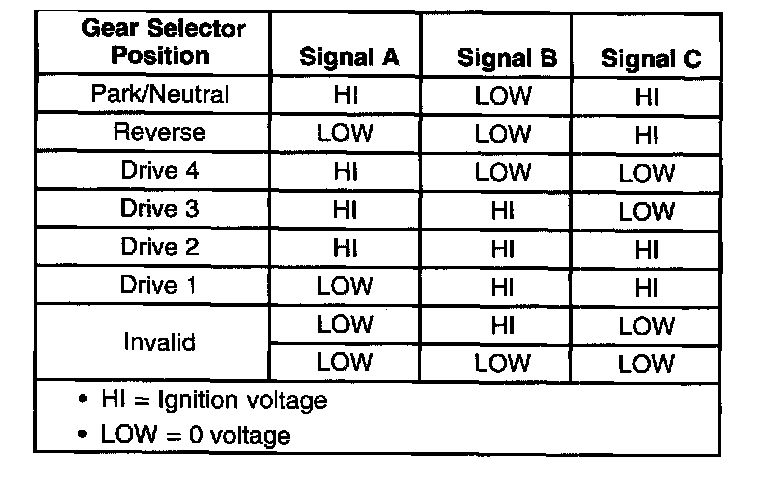

Transmission Fluid Pressure (TFP) Valve Position Switch Logic
Transmission Fluid Pressure (TFP) Valve Position Switch Logic
