Quick Connect Fitting(S) Service (Plastic Collar)

REMOVAL PROCEDURE





1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure.
2. Using compressed air, blow any dirt out of the quick-connect fitting.

CAUTION: Refer to Safety Glasses and Compressed Air Caution in Service Precautions.

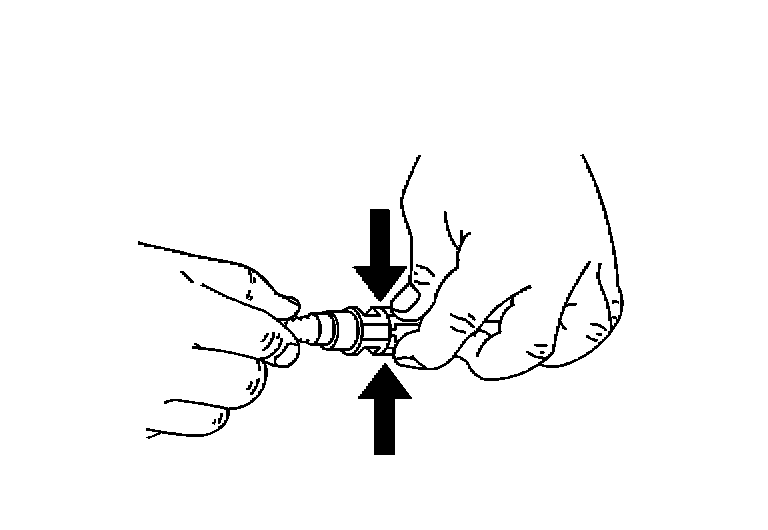

3. Squeeze the plastic retainer release tabs.

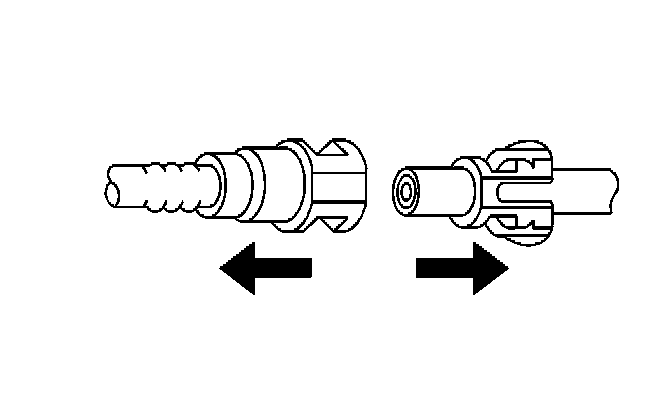

4. Pull the connection apart.

INSTALLATION PROCEDURE

CAUTION: Refer to Fuel Pipe Fitting Caution in Service Precautions.




1. Apply a few drops of clean engine oil to the male fuel pipe end.

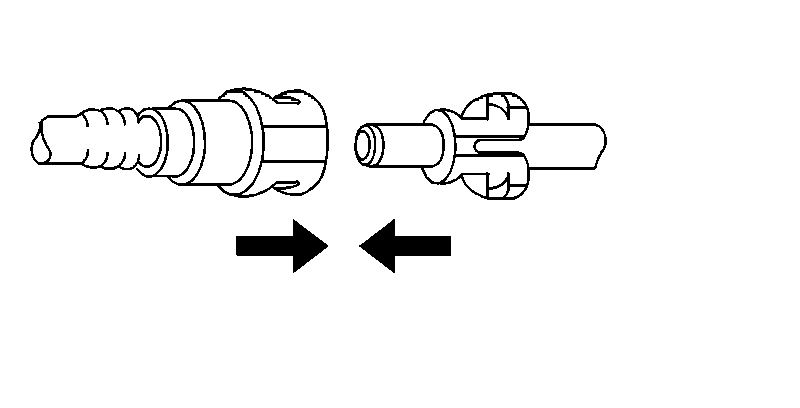

2. Push both sides of the quick-connect fitting together in order to cause the retaining tabs/fingers to snap into place.
3. Once installed, pull on both sides of the quick-connect fitting in order to ensure the connection is secure.
