Inlet

Radiator Inlet Hose Replacement (2.2L)

Tools Required
- J 38185 Hose Clamp Pliers

Removal Procedure

1. Partially drain the cooling system. Refer to Cooling System Draining and Filling, Service and Repair
2. Remove the air cleaner outlet resonator
3. Remove the radiator inlet hose from the support.

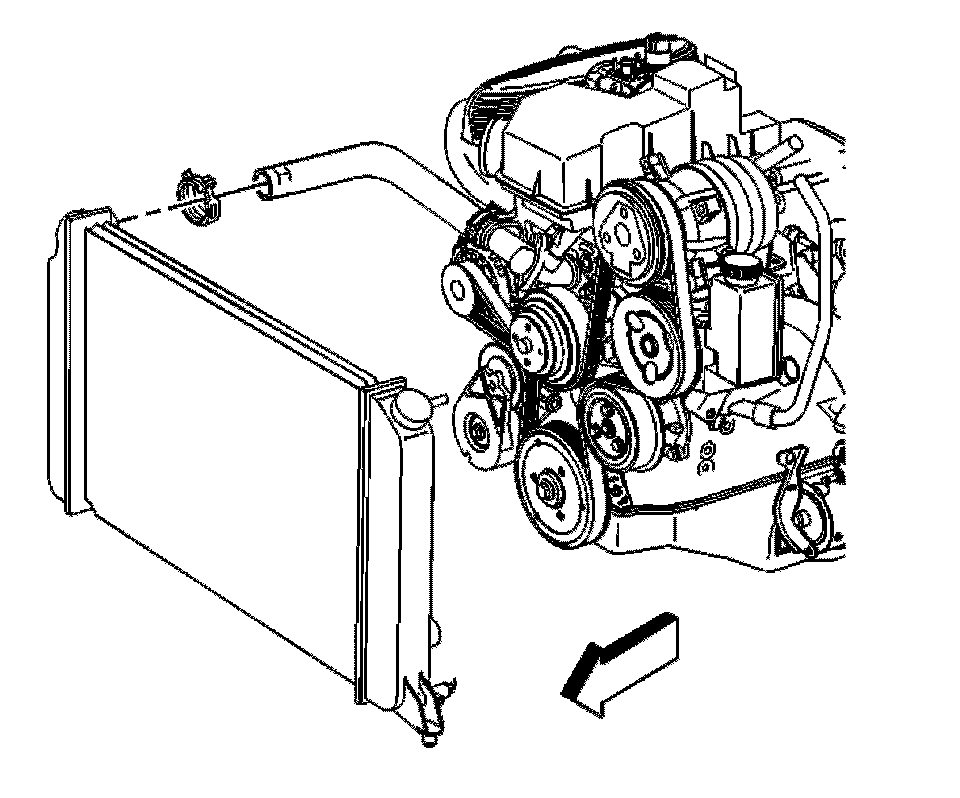

4. Using the J 38185 reposition the radiator inlet hose clamp from the radiator.

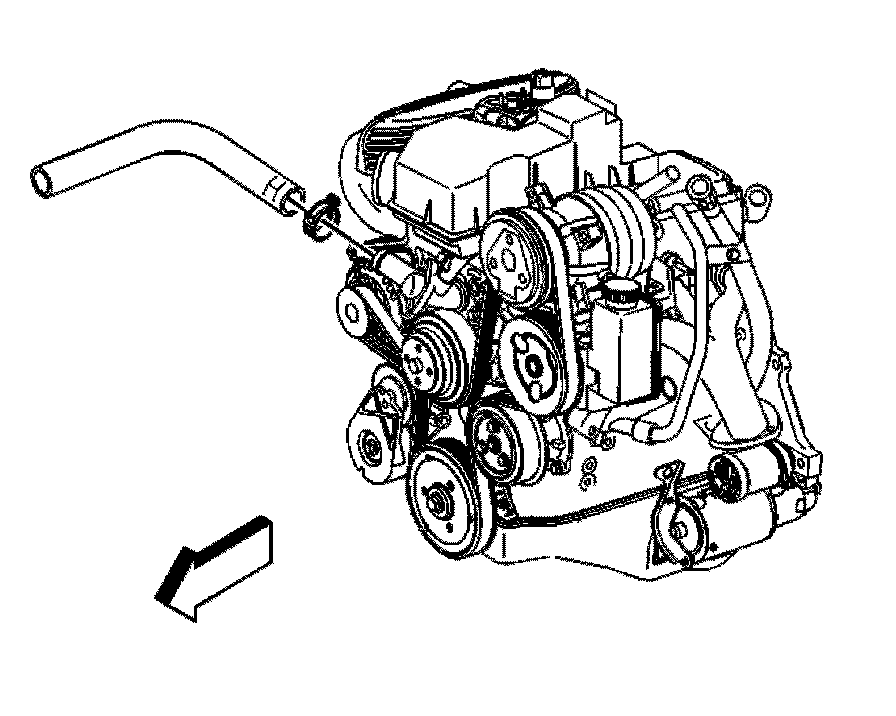

5. Using the J 38185 reposition the radiator inlet hose clamp from the coolant outlet.






6. Remove the radiator inlet hose.

Installation Procedure






1. Using theJ 38185 install the radiator inlet hose clamp to the coolant outlet.






2. Using theJ 38185 reposition the radiator inlet hose clamp to the radiator.
3. Install the radiator inlet hose to the radiator support.
4. Fill the cooling system. Refer to Cooling System Draining and Filling, Service and Repair
5. Install the air cleaner outlet resonator.
