With RPO Code HT6/HD6/HU6

COMPRESSOR PRESSURE RELIEF VALVE REMOVAL (With RPO Code HT6/HD6/HU6)

TOOLS REQUIRED
J 34992 Compressor Holding Fixture







1. Install the compressor onto the J 34992.

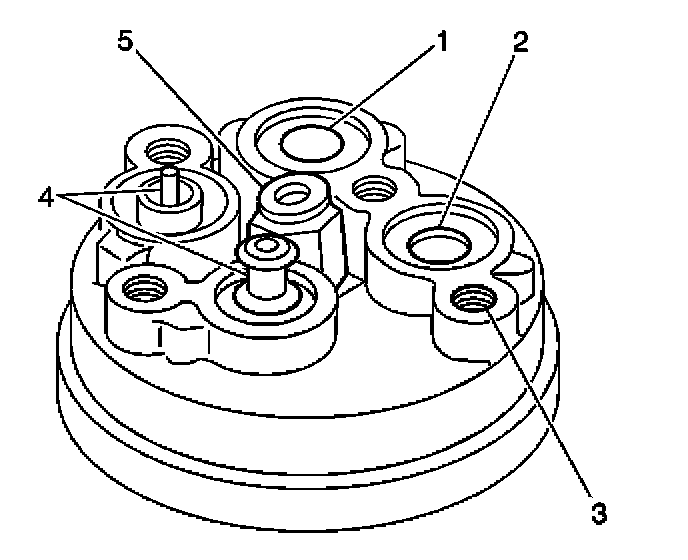

2. Remove the pressure relief valve (5) from the rear head of the compressor.
