Installation
COMPRESSOR PRESSURE RELIEF VALVE INSTALLTOOLS REQUIREDJ 41790 Compressor Holding Fixture

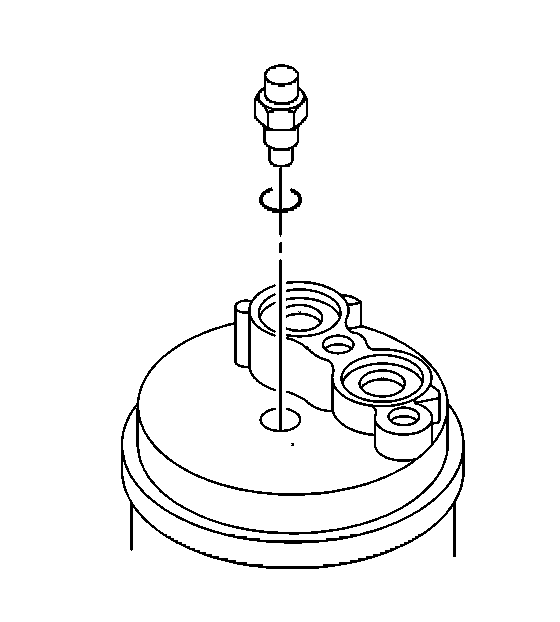

1. Clean the pressure relief valve seat area of the rear head.
2. Lubricate the O-ring of the new pressure relief valve with clean 525 viscosity refrigerant oil.
3. Install the new pressure relief valve into the compressor.
NOTE: Refer to Fastener Notice in Service Precautions. Vehicle Damage Warnings
Tighten
Tighten the compressor pressure relief valve to.............9 N.m (80 lb in).
4. Remove the compressor from the J 41790.
5. Install the A/C compressor to the vehicle.
