Parking Brake Pedal: Service and Repair

Park Brake Pedal Assembly Replacement

Removal Procedure
1. Release the park brake, if applied.
2. Raise the vehicle. Refer to Vehicle Lifting.
3. Loosen the park brake cable.

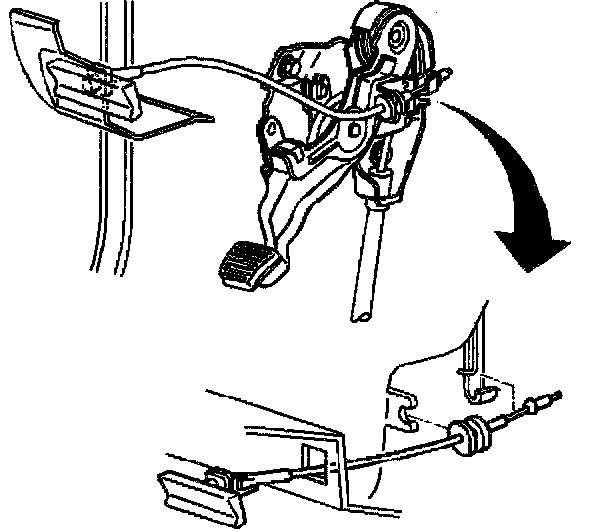

4. Remove the park brake release handle.

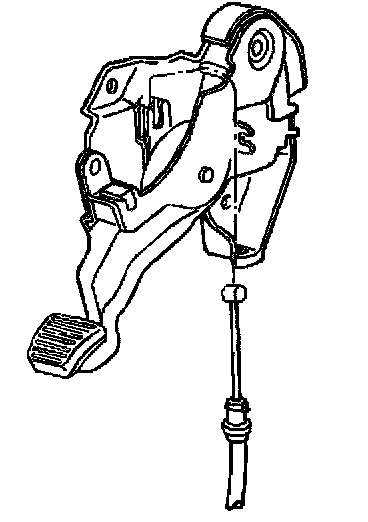

5. Press the retaining tabs in on the front park brake cable.
6. Remove the front park brake cable from the park brake pedal.

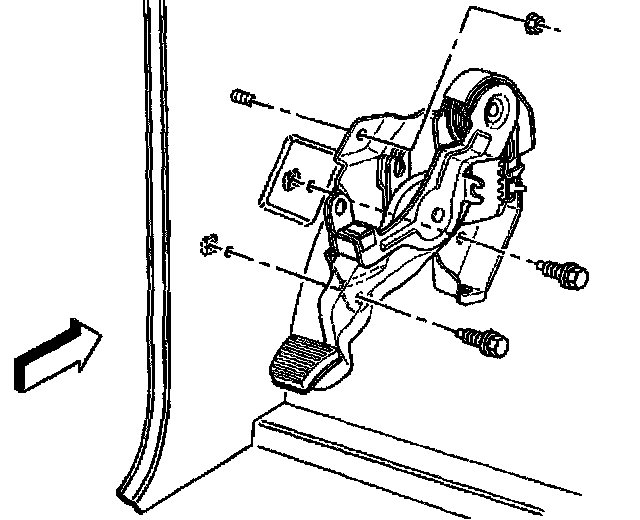

7. Remove the park brake pedal mounting bolts.
8. Remove the park brake pedal assembly.

Installation Procedure
1. Install the brake pedal assembly.

Notice: Refer to Fastener Notice in Service Precautions.

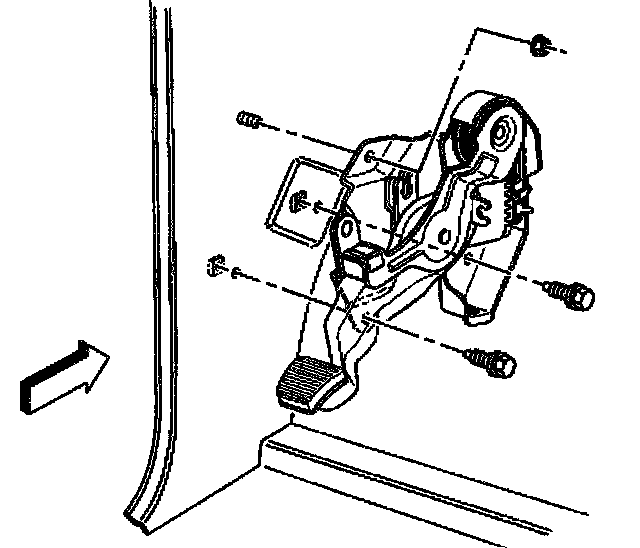

2. Install the park brake pedal mounting bolts and the nut.
Tighten the park brake pedal retaining bolts and the nut to 25 Nm (18 ft. lbs.).

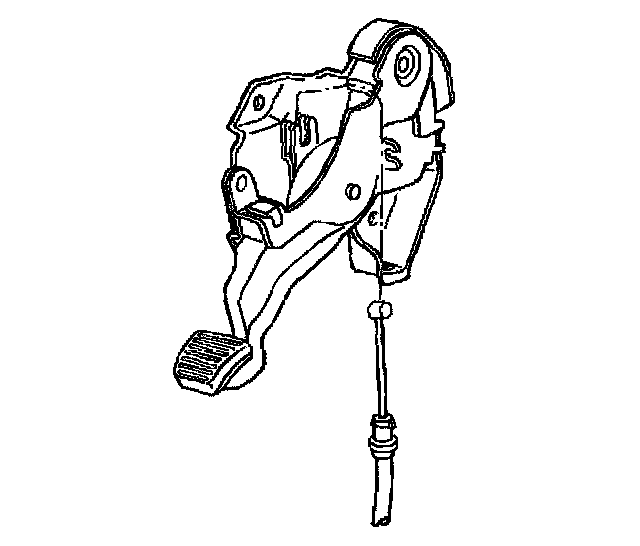

3. Install the park brake cable to the brake pedal assembly.

Important: Ensure that the brake cable retainer are expanded and are locked in the park brake pedal bracket

4. Install the front brake cable to the park brake pedal assembly.

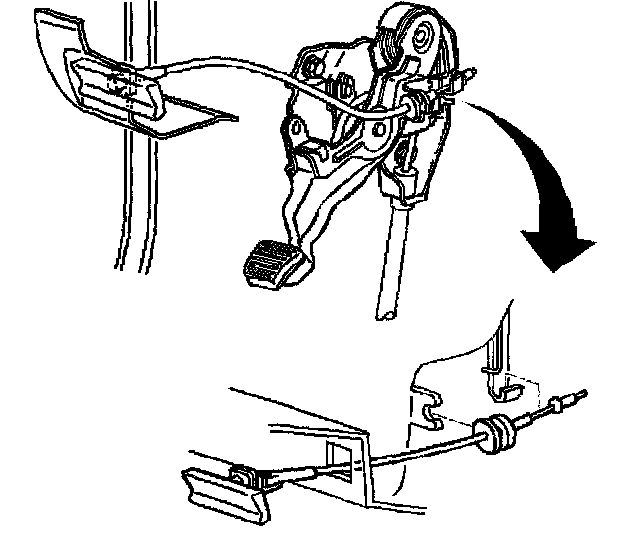

5. Install the brake release handle.
6. Adjust the park brake cable.
7. Lower the vehicle. Refer to Vehicle Lifting.
