Disc Brake Backing Plate Replacement - Rear

Disc Brake Backing Plate Replacement - Rear

Removal Procedure
1. Release the park brake, if applied.
2. Raise and support the vehicle. Refer to Vehicle Lifting.
3. Remove the tire and wheel assembly.

Notice: Refer to Brake Caliper Notice in Service Precautions.

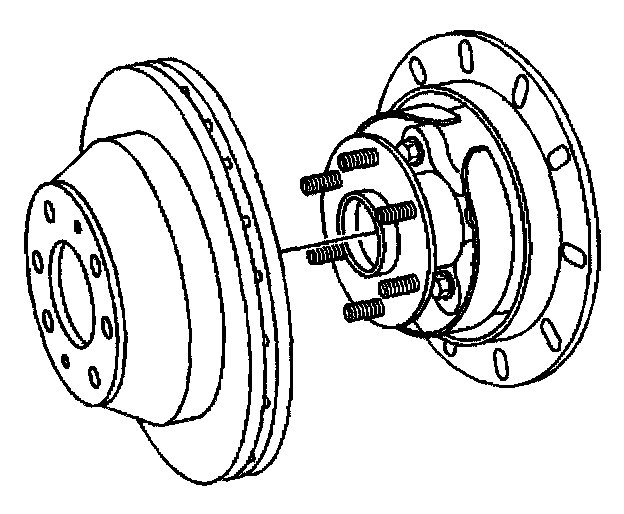

4. Remove the brake rotor.





5. Remove the axle shaft.





6. Remove the park brake shoe.

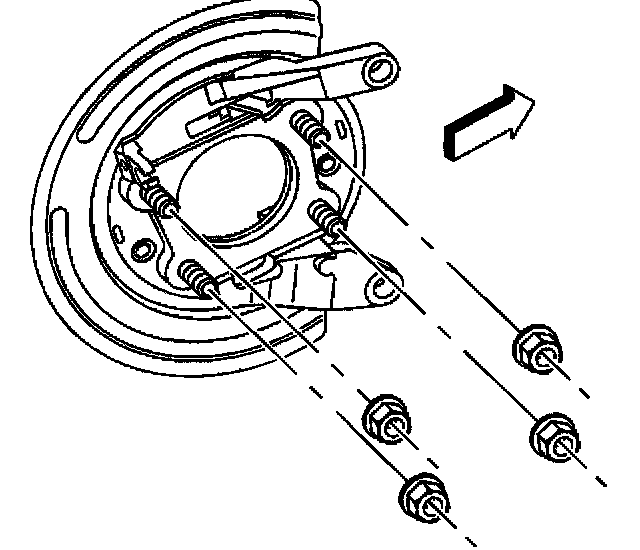

7. Remove the backing plate nuts.
8. Remove the backing plate from axle housing flange.

Installation Procedure





1. Install the backing plate to the axle housing flange.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the backing plate nuts.
Tighten the backing plate bolts to 135 Nm (100 ft. lbs.).




3. Install the park brake shoe.





4. Install the axle shaft.





5. Adjust the park brake shoe (1).





6. Install the brake rotor.
7. Install the tire and wheel assembly.
8. Lower vehicle. Refer to Vehicle Lifting.
9. With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
10. Slowly release the brake pedal.
11. Wait 15 seconds, then repeat steps 9-10 until a firm brake pedal is obtained. This will properly seat the brake caliper pistons and brake pads.
12. Adjust park brake cable.
