Tailgate Weatherstrip: Service and Repair

Weatherstrip Replacement - End Gate Window

Removal Procedure

1. Open the endgate.

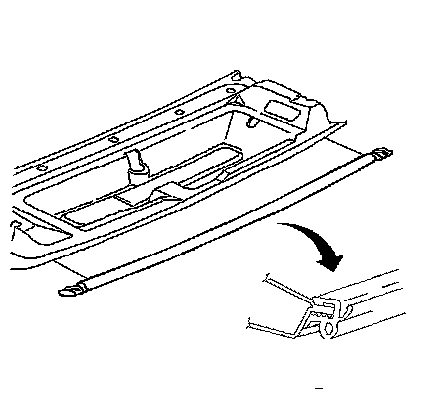

2. Starting at the corner of the endgate flange, pull the weatherstrip molding from the endgate.

Installation Procedure




1. Push the ends of the weatherstrip onto the endgate flange corners.
2. Push the weatherstrip molding onto the flange along the entire length of the endgate.
