Home >> Chevy Truck >> 2003 >> S10/T10 Blazer 2WD V6-4.3L VIN X >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights >> Interior Lights Schematics >> Driver Information Display Module - With Sunroof

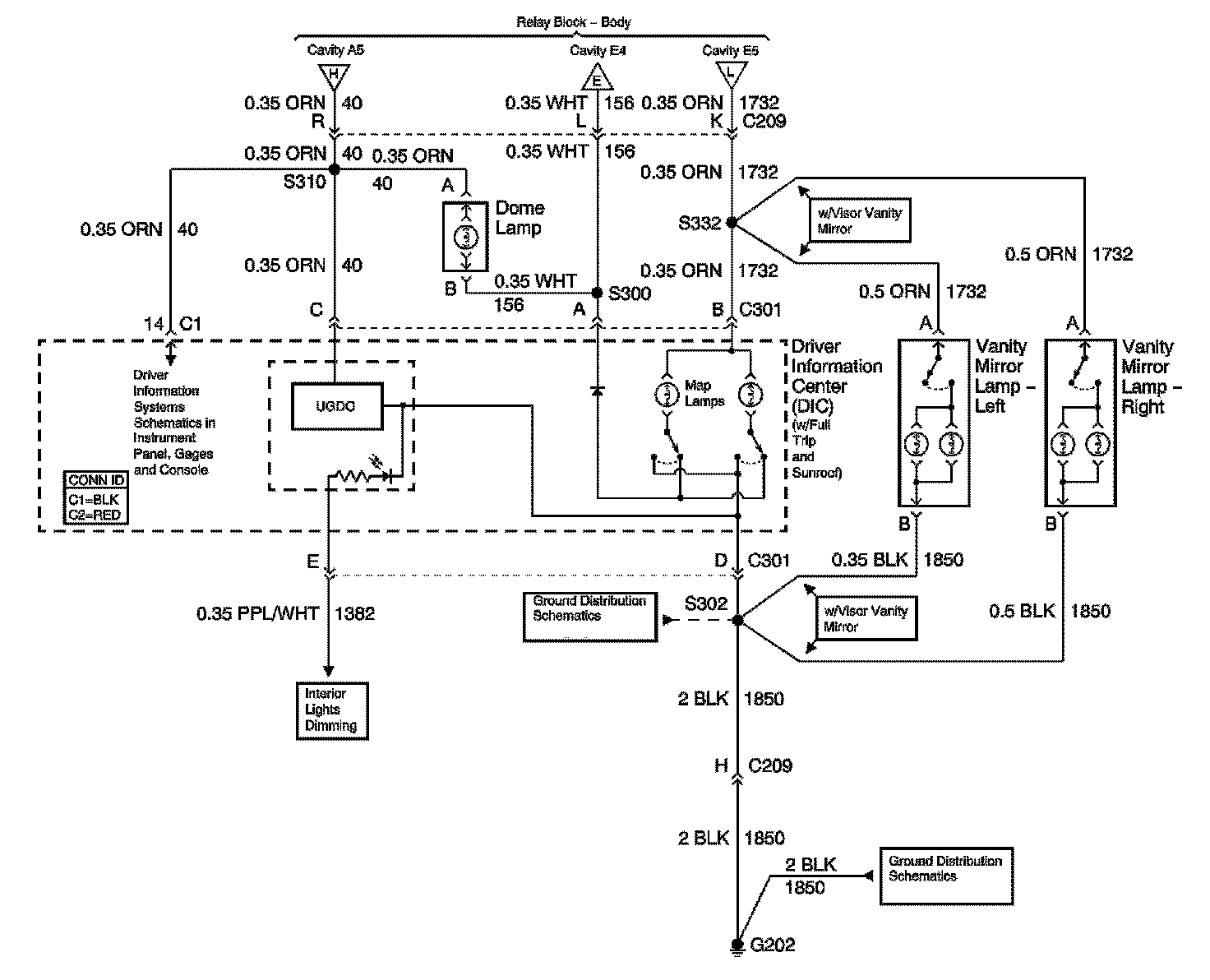

Driver Information Display Module - With Sunroof
