Coat Hook Replacement

COAT HOOK REPLACEMENT (UTILITY)

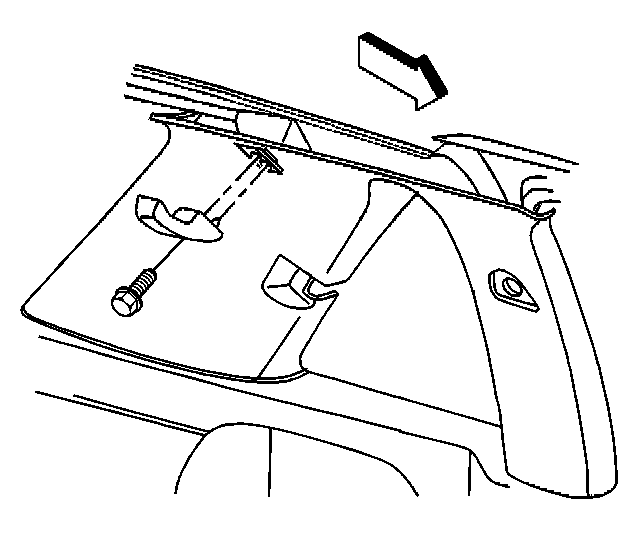

REMOVAL PROCEDURE




1. Remove the screw that retains the coat hook to the vehicle.
2. Remove the coat hook from the vehicle.

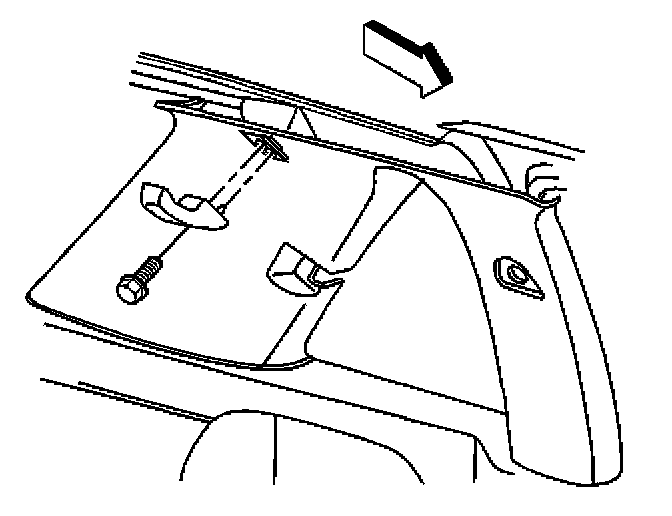

INSTALLATION PROCEDURE




1. Install the coat hook to the vehicle.
2. Install the screw that retains the coat hook to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 1.4 N.m (12 lb in).
