Chevy Truck
>>
2003
>>
K 3500 Truck 4WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Transmission Speed Sensor, A/T
>>
Allison Transmission
>>

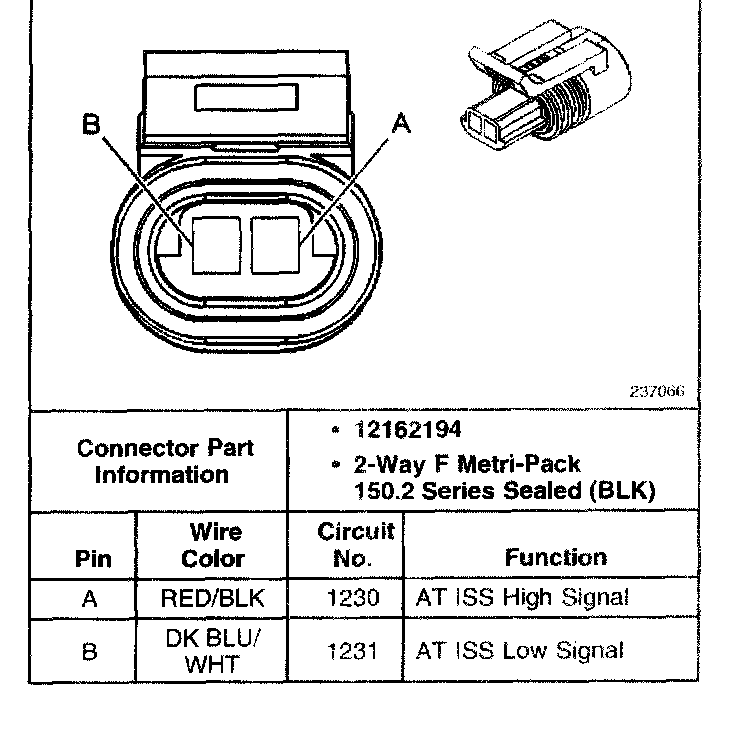

Input Speed Sensor Connector
Input Speed Sensor Connector
Input Speed Sensor Connector:
