HVAC Module - Rear Auxilliary
HVAC Module - Rear Auxilliary

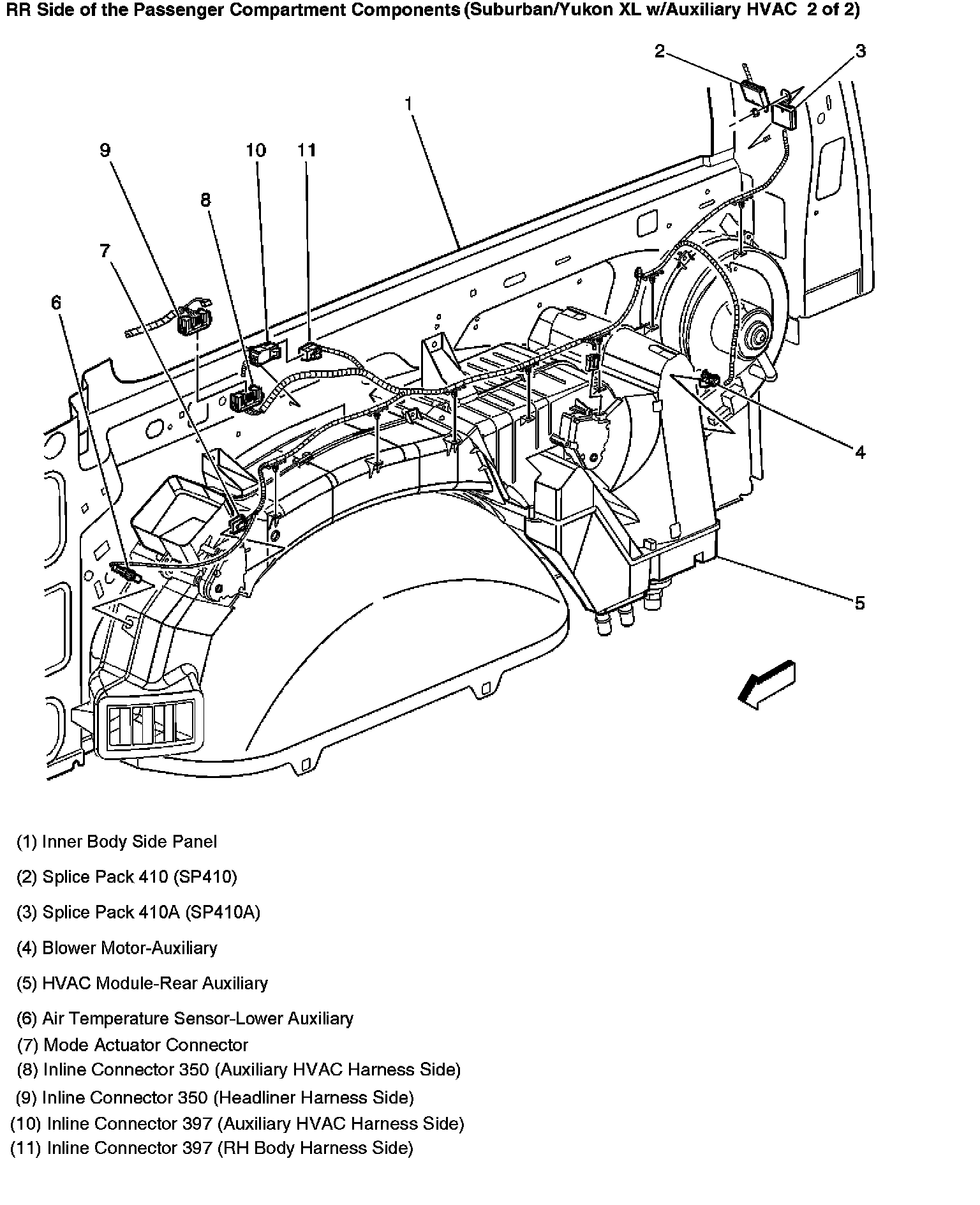

RR Side Of The Passenger Compartment (w/Auxiliary HVAC):
