EGR Valve Solenoid

Exhaust Gas Recirculation (EGR) Valve Solenoid Replacement

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

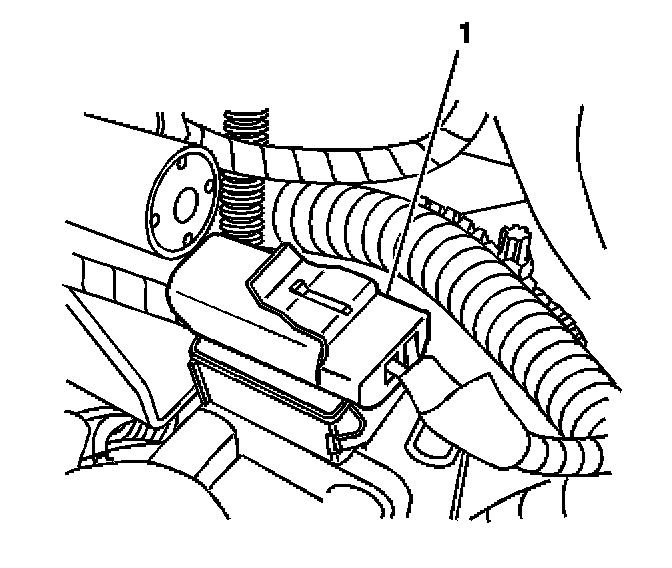

2. Disconnect the exhaust gas recirculation (EGR) valve solenoid electrical connector (1).

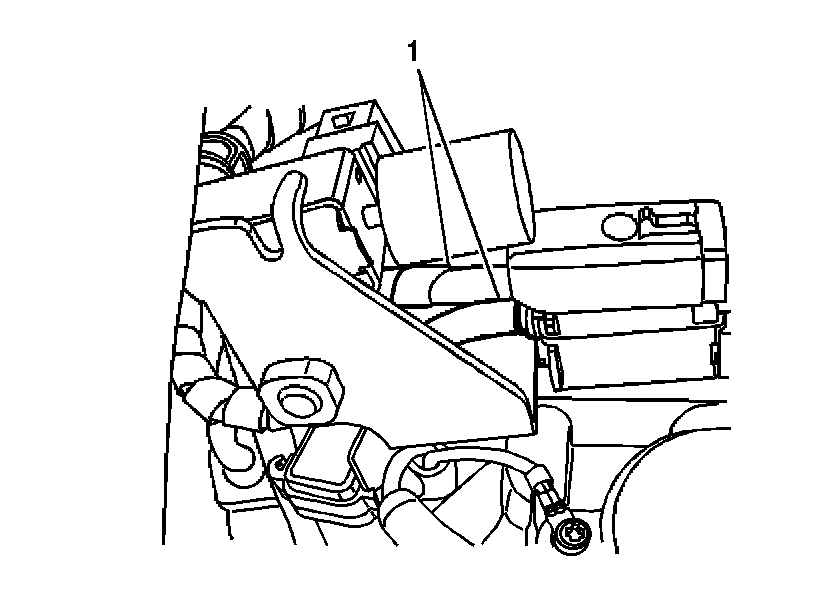

3. Disconnect the EGR valve solenoid vacuum lines (1).

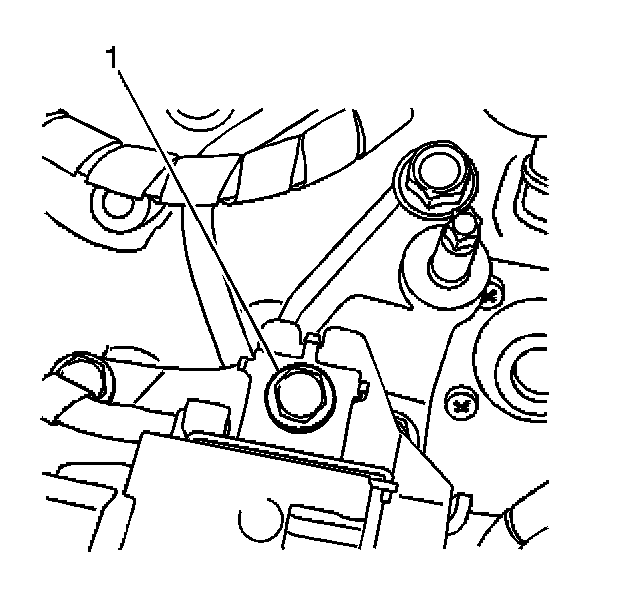

4. Remove the EGR valve solenoid bolt (1) and solenoid.

INSTALLATION PROCEDURE

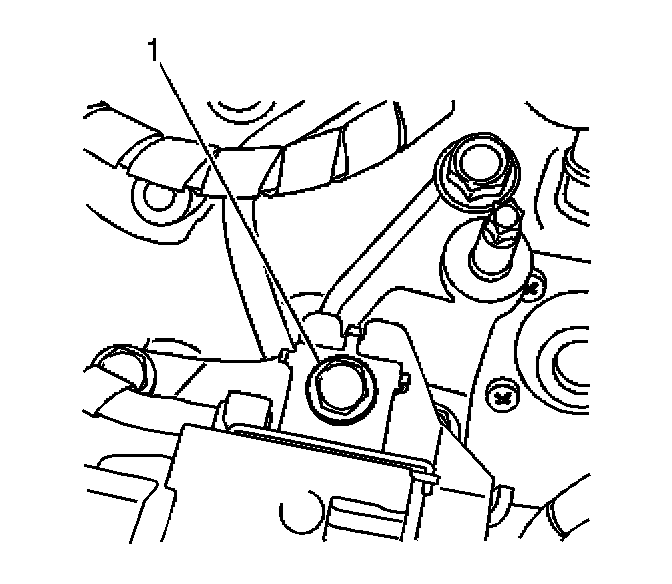

1. Install the EGR valve solenoid and bolt (1).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten bolt to 10 N.m (89 lb in).




2. Connect the EGR valve solenoid vacuum lines (1).

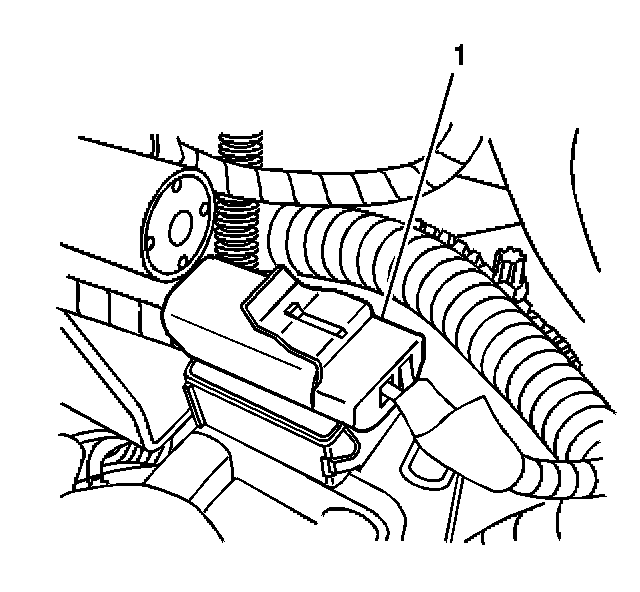

3. Connect the EGR valve solenoid electrical connector (1).
4. Connect the negative battery cable.
