Pitman Arm: Service and Repair

Pitman Arm Replacement

Tools Required
- J6632-01 Pitman Arm Puller
- J29107-A Universal Pitman Arm Puller

Removal Procedure

1. Raise and suitable support the vehicle. Refer to Vehicle Lifting.
2. Remove the power steering gear.





3. Install the power steering gear into a vise.

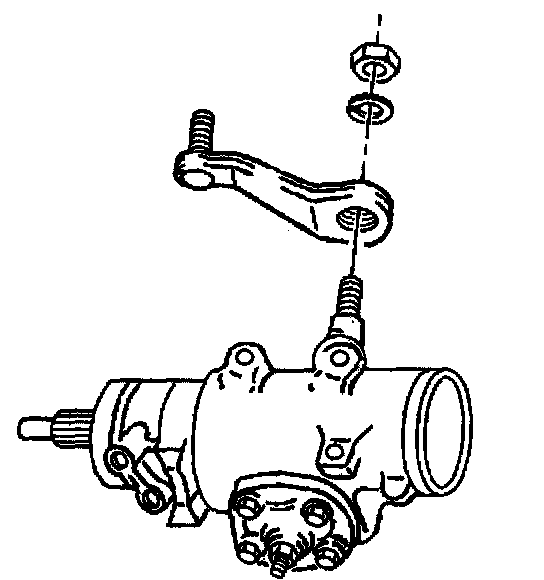

4. Remove the pitman arm nut and washer.

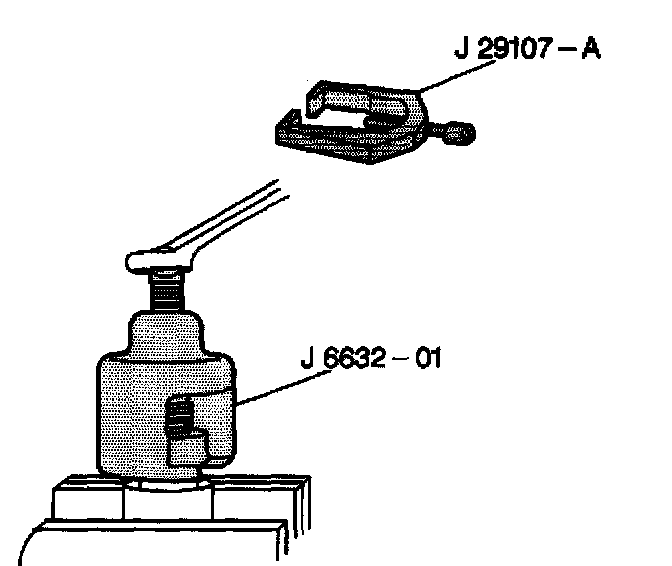

5. Remove the pitman arm from the pitman shaft using J6632-01 or J29107-A.

Installation Procedure





1. Install the pitman arm to the power steering gear.
2. Align the marks made at the removal on the pitman arm and the pitman arm shaft.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install a new pitman arm washer and nut.
Tighten the nut to 250 Nm (184 ft. lbs.).
4. Remove the power steering gear from the vise.
5. Install the power steering gear.
6. Lower the vehicle.
7. Check the wheel alignment.
