Seat Belt Height Adjuster: Service and Repair
SEAT BELT HEIGHT ADJUSTER REPLACEMENT - FRONTREMOVAL PROCEDURE

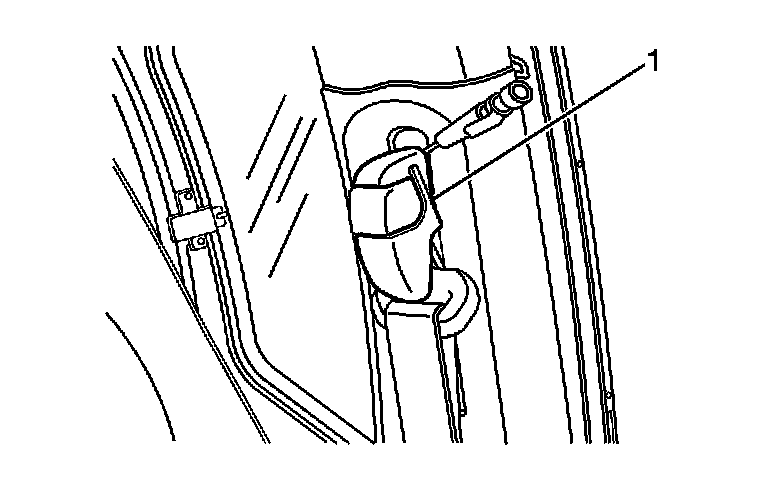

1. Using a flat bladed tool, remove the shoulder/seat belt guide to the guide trim cover (1).

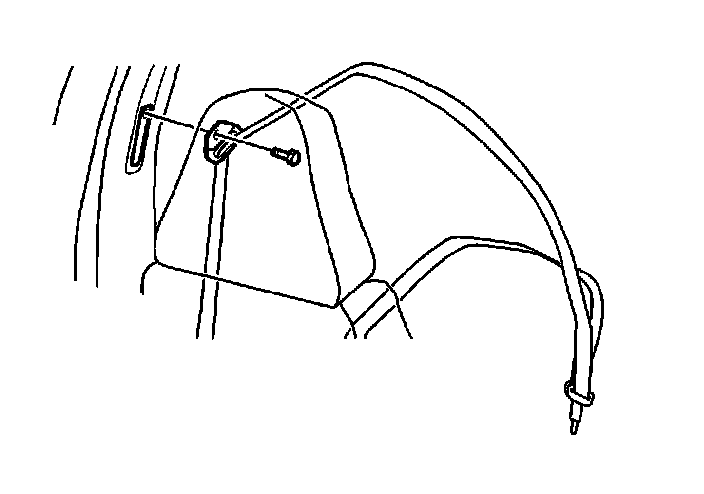

2. Remove the bolt retaining the shoulder/seat belt guide to the guide adjuster.
3. Remove the shoulder/seat belt guide from the guide adjuster.
4. Remove the front door upper pillar garnish molding.

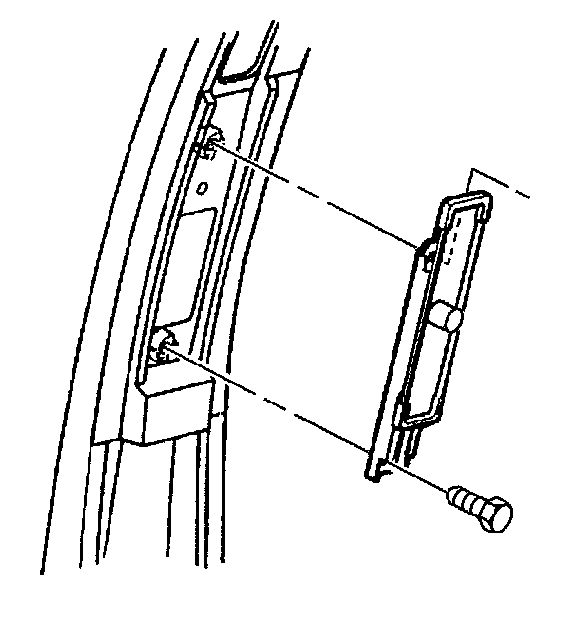

5. Remove the shoulder/seat belt guide adjuster retaining bolts from the pillar.
6. Remove the shoulder/seat belt guide adjuster from the vehicle.
INSTALLATION PROCEDURE
1. Install the shoulder/seat belt guide adjuster to the vehicle.

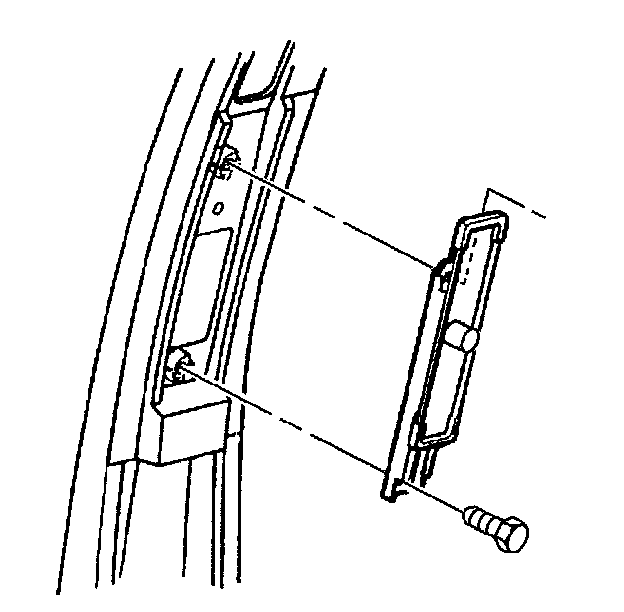

2. Install the shoulder/seat belt guide adjuster retaining bolts to the pillar.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the shoulder/seat belt guide adjuster retaining bolts to 52 N.m (38 lb ft).
3. Install the shoulder/seat belt guide to the guide adjuster.

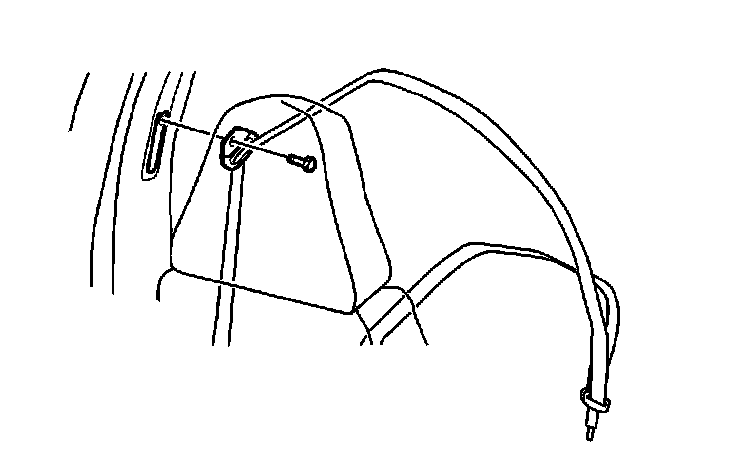

4. Install the shoulder/seat belt guide retaining bolt to the guide adjuster.
Tighten
Tighten the shoulder/seat belt guide retaining bolt to 52 N.m (38 lb ft).
5. Install the front door upper pillar garnish molding.
6. Install the shoulder/seat belt guide to the guide adjuster cover (1).
