Automatic Transmission Controls Schematics, SW, Indicator, VSS
Automatic Transmission Controls Schematics, SW, Indicator, VSS

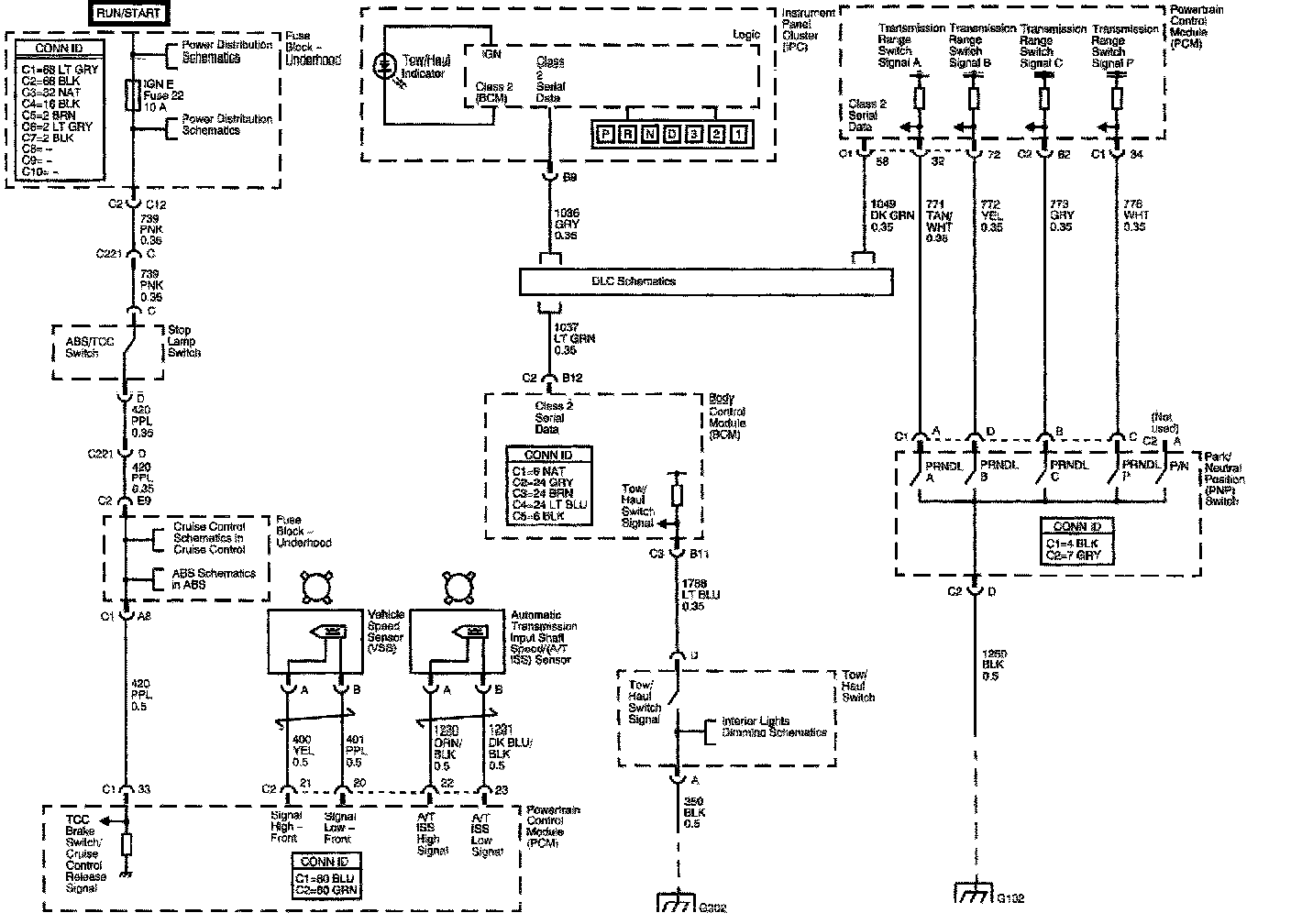

Automatic Transmission Controls Diagrams (Switches, Indicator, and VSS):
