Home
>>
Chevy Truck
>>
2003
>>
Express 1/2 Ton Van V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Transmission Speed Sensor, A/T
>>

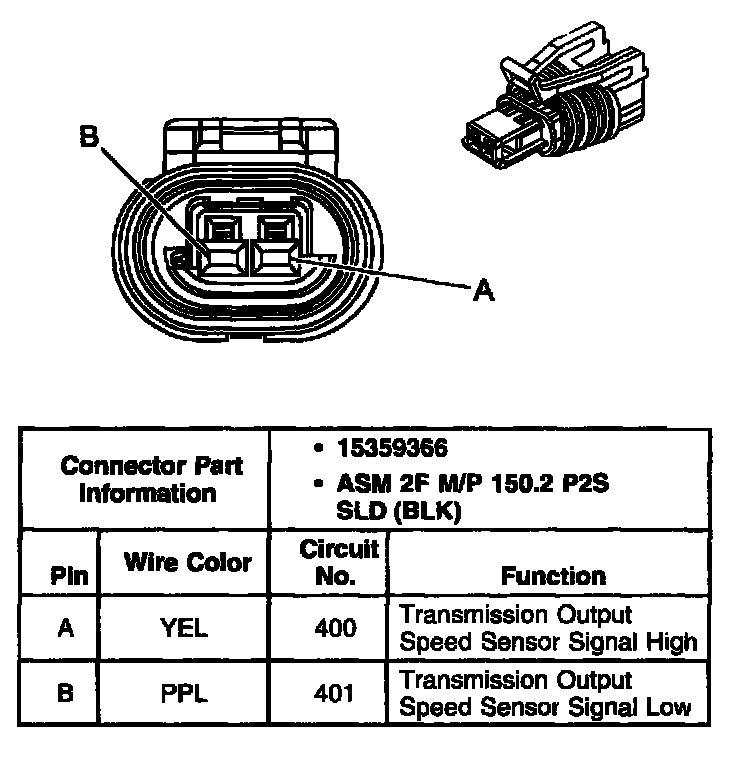

Automatic Transmission Output Shaft Speed (at Iss) Sensor
Automatic Transmission Output Shaft Speed (at Iss) Sensor
