Automatic Transmission/Transaxle
>>
Torque Converter Clutch Solenoid, A/T
>>
4L60-E/4L65-E
>>

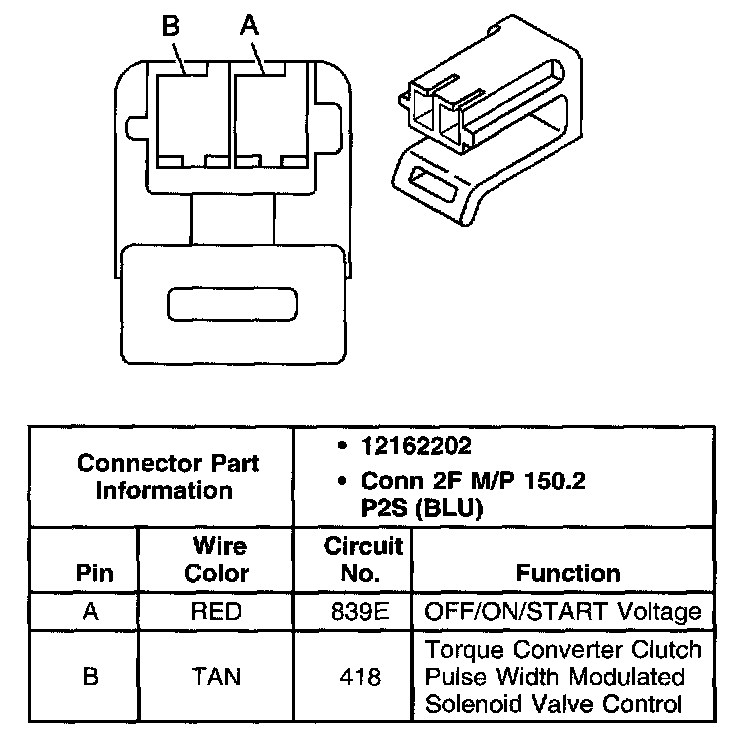

Torque CONV Clutch Pulse Width Modulated TCC PWM Solenoid Valve
Torque CONV Clutch Pulse Width Modulated TCC PWM Solenoid Valve
