Park Brake Cable Equalizer - Replacement

Park Brake Cable Equalizer Replacement

Removal Procedure
1. Disable the park brake cable automatic adjuster.
2. Raise the vehicle. Refer to Vehicle Lifting.

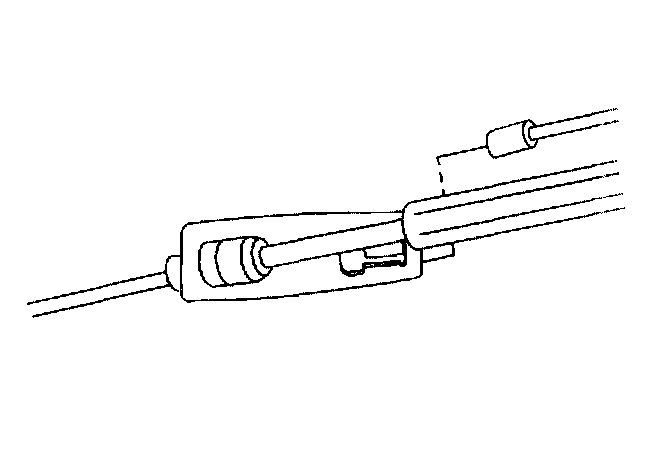

3. Remove the equalizer



Installation Procedure







1. Install the equalizer.
2. Lower the vehicle.
3. Enable the park brake cable automatic adjuster.
4. Check the adjustment
