Home
>>
Chevy Truck
>>
2003
>>
Express 1/2 Ton Van V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

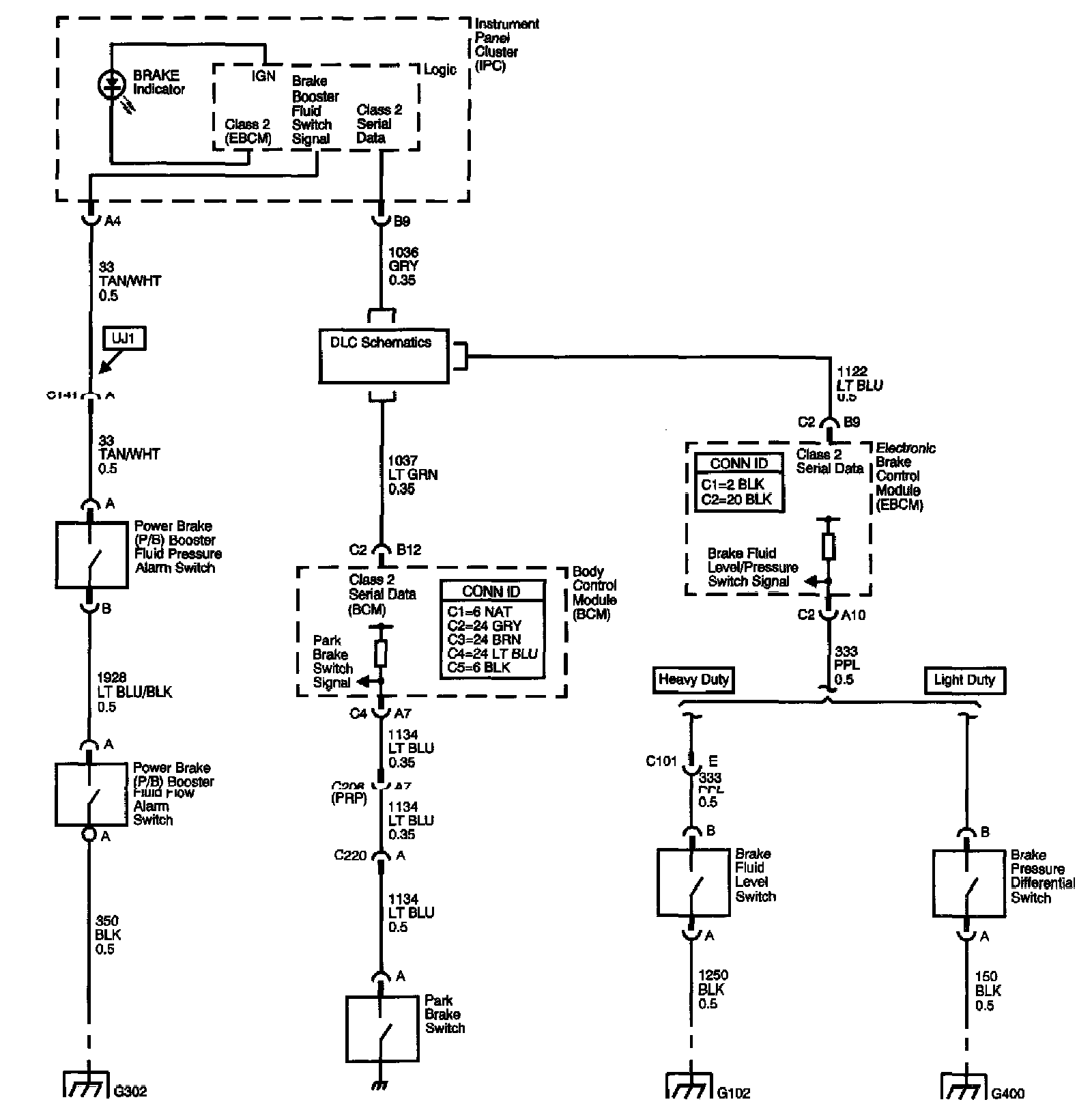

Brakes / Traction Control Diagram 1:
