Power Steering Pump Replacement

Power Steering Pump Replacement

Removal Procedure
1. Place a drain pan below under the vehicle.

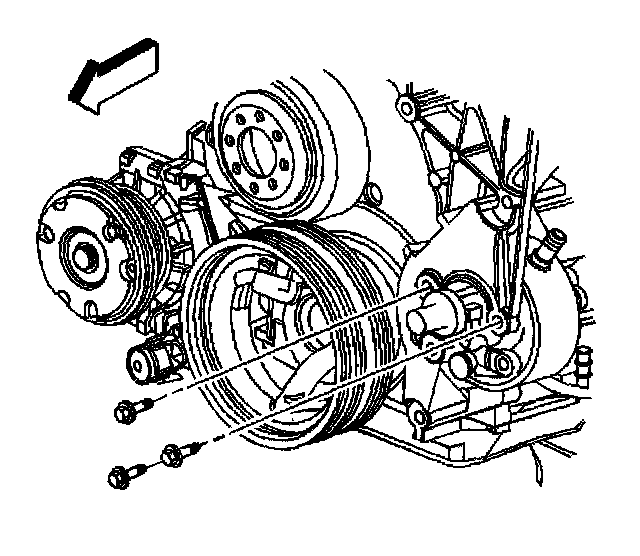

2. Remove the power steering pump pulley.
3. Raise and support the vehicle. Refer to Vehicle Lifting.
4. Remove the tire and wheel.

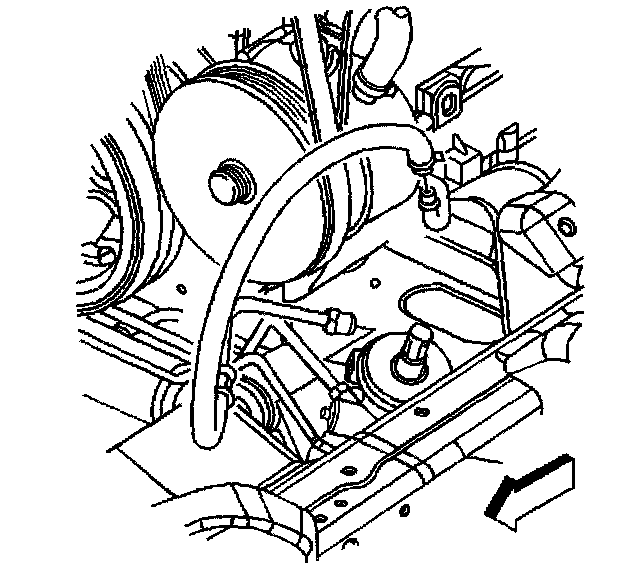

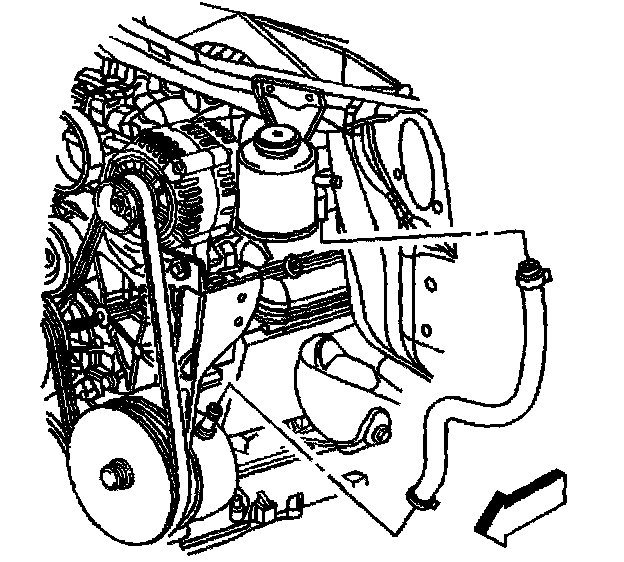

5. Disconnect the reservoir outlet hose from the power steering pump through the wheel well.





6. Disconnect the power steering gear outlet hose from the power steering pump through the wheel well.

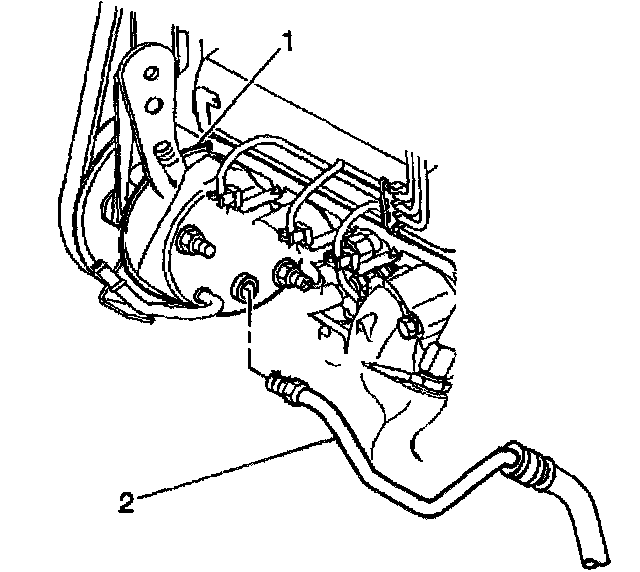

7. Disconnect the power brake booster inlet hose (2) from the power steering pump (1) through the wheel well.
8. Cap the ends of the hose and the power steering pump in order to prevent the entrance of dirt.
9. Lower the vehicle.

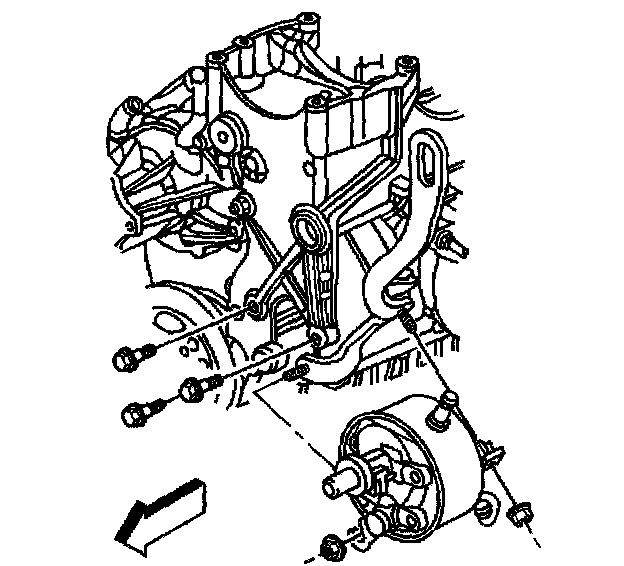

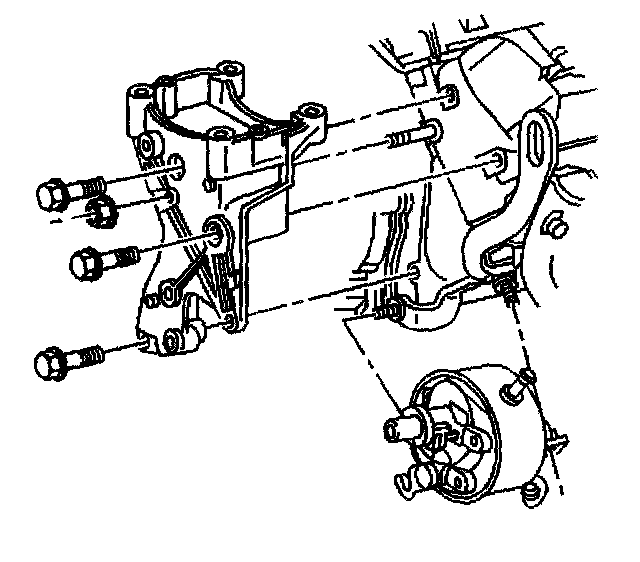

10. Remove the power steering pump mounting bolts and the nuts.

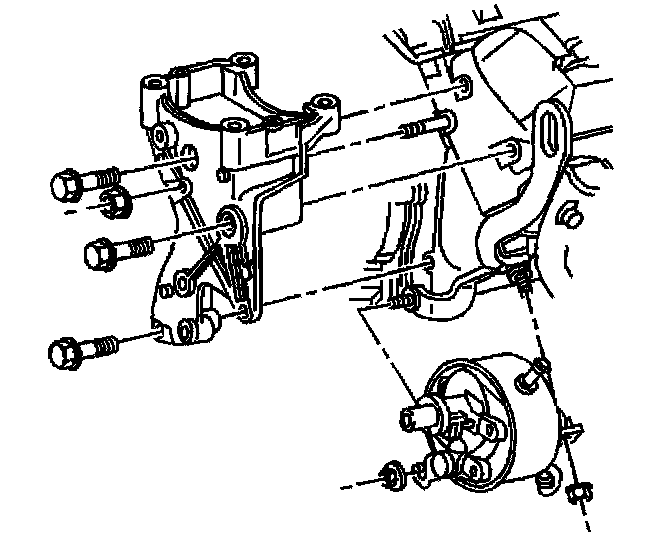

11. Remove the accessory mounting bracket mounting bolts and nut
12. Pull the accessory bracket forward.
13. Remove the power steering pump from the vehicle.

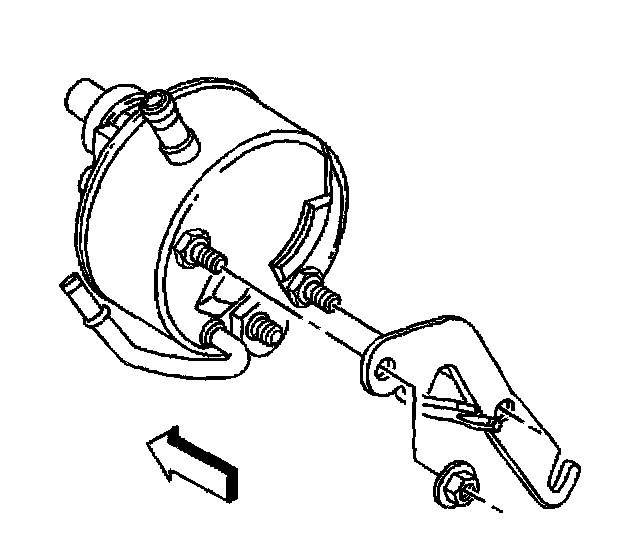

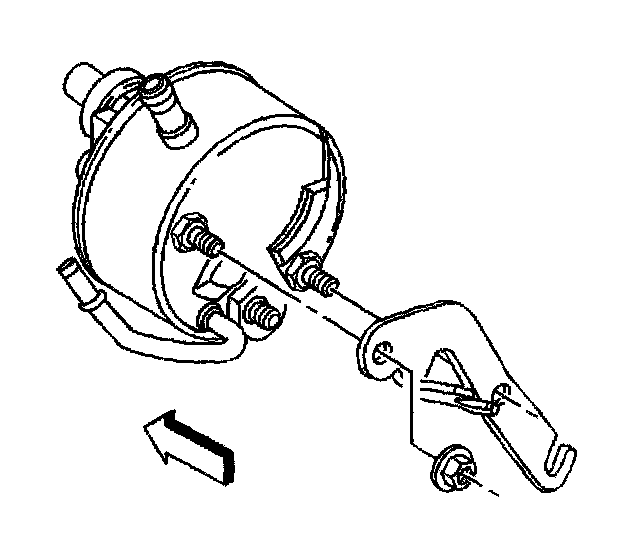

14. Remove the power steering pump rear bracket mounting nuts.
15. Remove the power steering pump rear bracket.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the rear bracket to the power steering pump.
2. Install the power steering pump rear bracket mounting nuts.
Tighten the nuts to 50 Nm (37 ft. lbs.).





3. Install the power steering pump to the vehicle.
4. Install the power steering pump front mounting bolts.
Tighten the bolts to 50 Nm (37 ft. lbs.).
5. Reposition the accessory mounting bracket and install the mounting bolts and nut.
Tighten the bolts and nut to 50 Nm (37 ft. lbs.).
6. Install the power steering pump lower and rear mounting nuts.
Tighten the nuts to 41 Nm (30 ft. lbs.).





7. Uncap the power steering hoses.
8. Raise the vehicle.

Important: Route the power steering hoses in the same location in which they were removed.

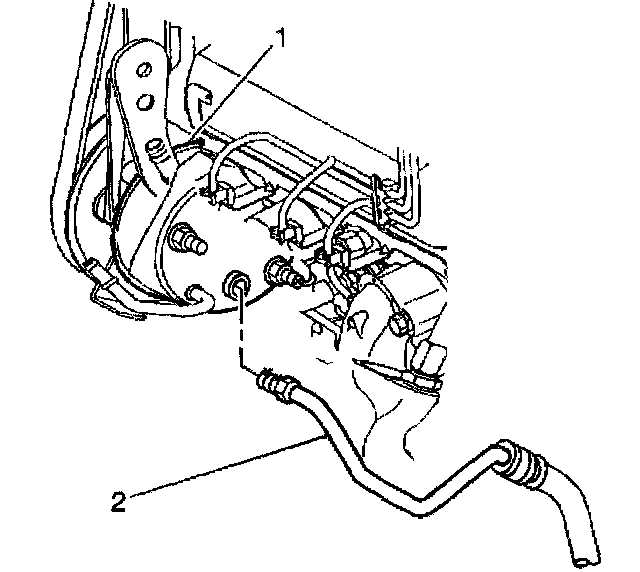

9. Install the power brake booster inlet hose (2) to the power steering pump through the wheel well.
Tighten the hose fitting to 33 Nm (24 ft. lbs.).

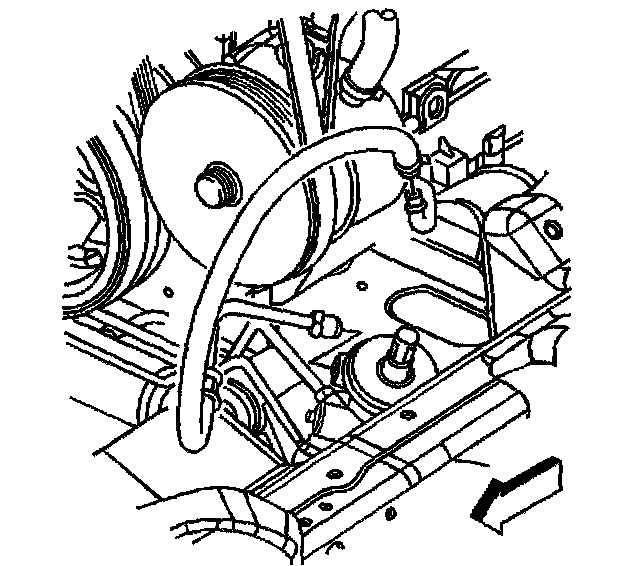

10. Install the power steering gear outlet hose through the wheel well.

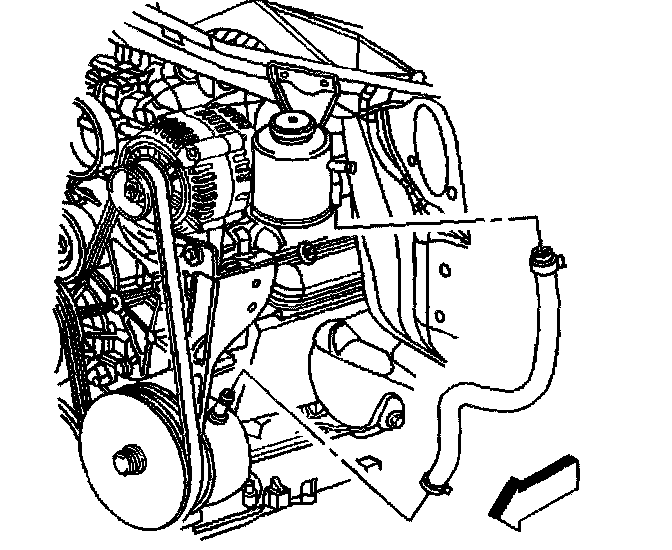

11. Install the reservoir outlet hose to the power steering pump through the wheel well
12. Lower the vehicle.
13. Install the power steering pump pulley.
14. Bleed the system.
15. Remove the drain pan from under the vehicle.
