Home
>>
Chevy Truck
>>
2003
>>
C Tahoe 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Cylinder Head Assembly
Cylinder Head Assembly

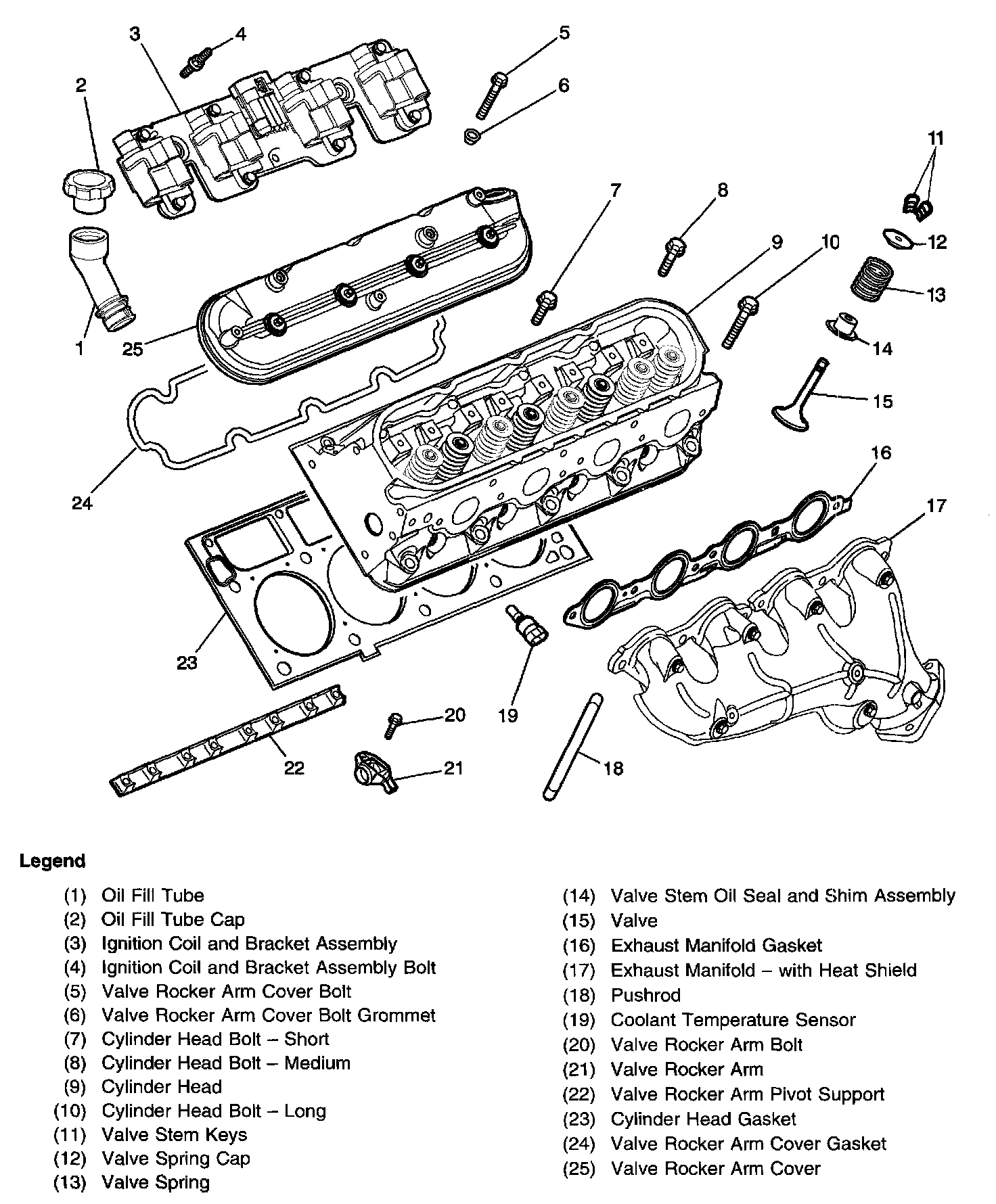

Cylinder Head/Upper Engine:

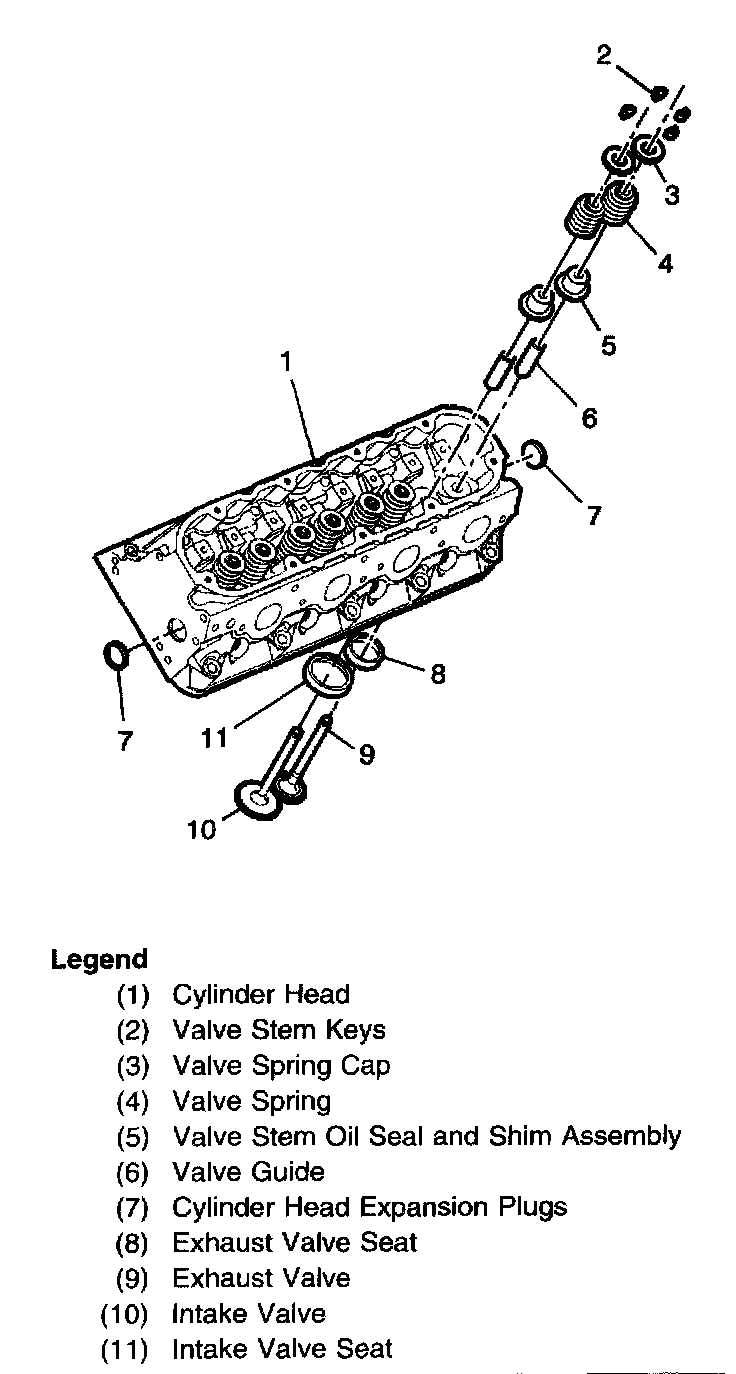

Cylinder Head Assembly - Aluminum:
