Home
>>
Chevy Truck
>>
2003
>>
C Tahoe 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Clockspring Assembly / Spiral Cable, Air Bag
>>
Inflatable Restraint Steering Wheel Module Coil - C4
Inflatable Restraint Steering Wheel Module Coil - C4

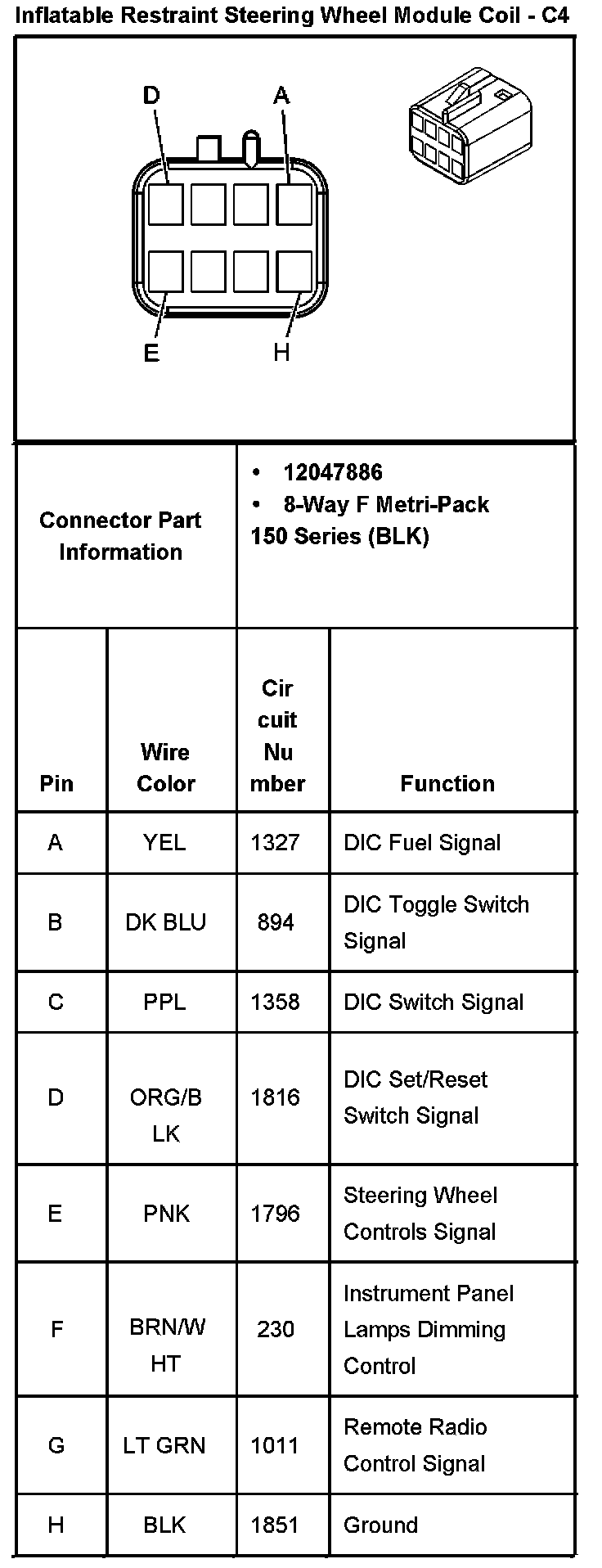

Inflatable Restraint Steering Wheel Module Coil - C4:
