Lock Striker Replacement - End Gate
LOCK STRIKER REPLACEMENT - END GATEREMOVAL PROCEDURE

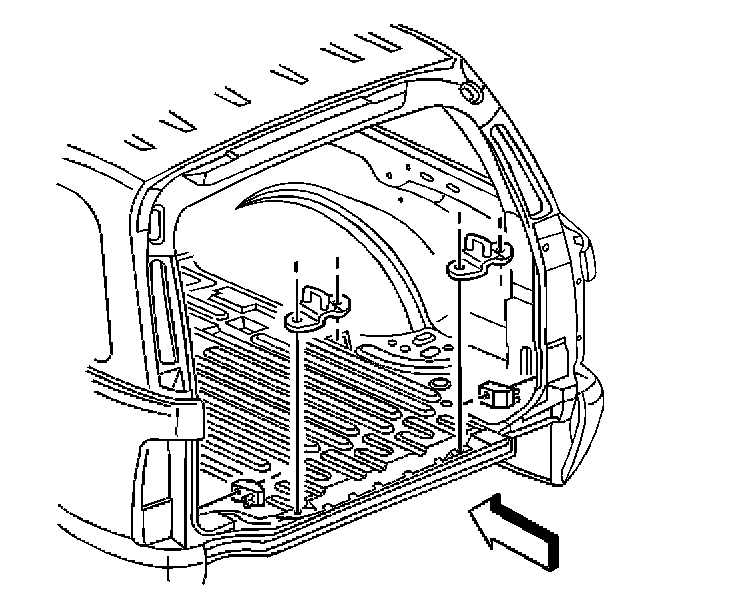

1. Remove the lower striker bolt.
2. Remove the striker.
INSTALLATION PROCEDURE

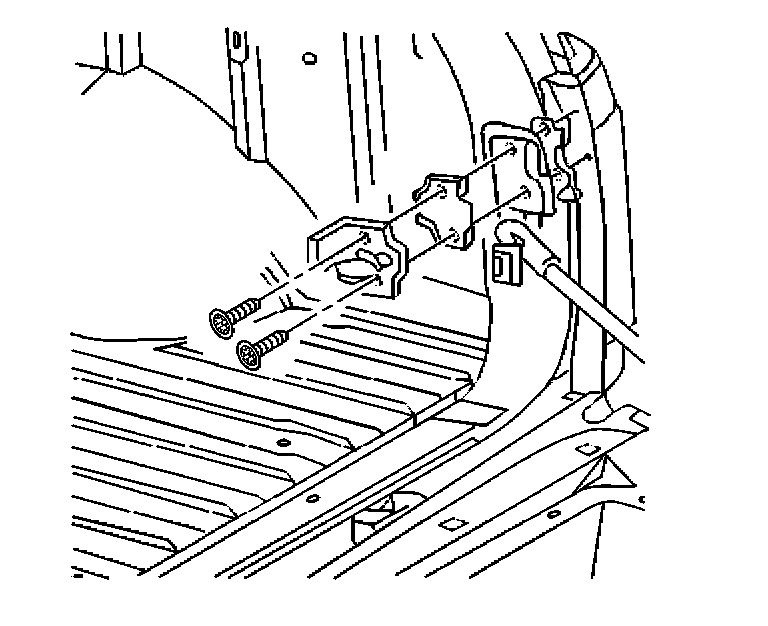

1. Install the striker.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the bolts to 22 N.m (16 lb ft).
2. Install the trim panel.
