Chevy Truck
>>
2003
>>
C Tahoe 2WD V8-4.8L VIN V
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>
Seat Views
>>

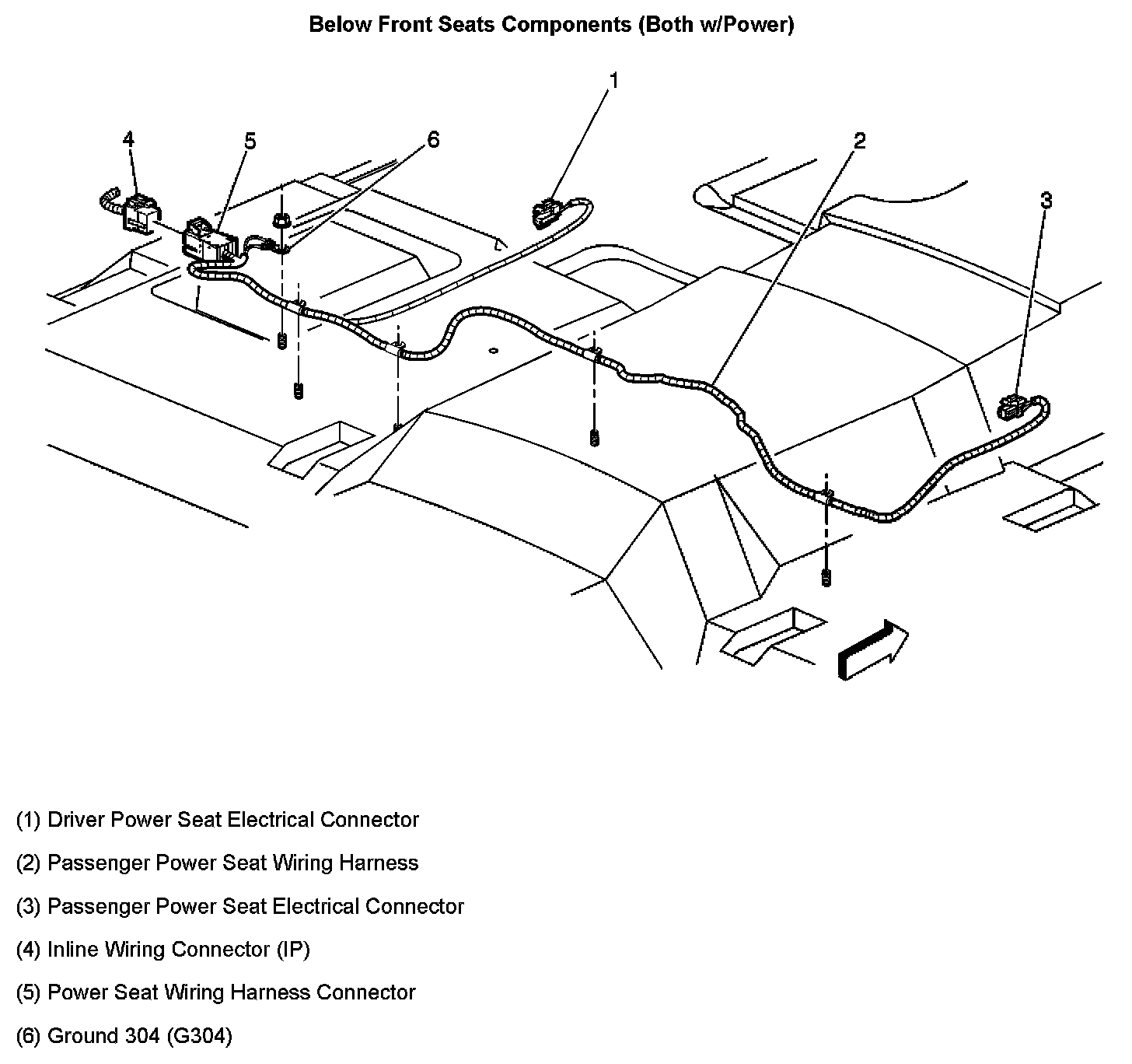

Below Front Seats Components (Both W/Power)
Below Front Seats Components (Both W/Power)
Below Front Seats Components (Both W/Power):
