Heater Core Replacement - Auxiliary

REMOVAL PROCEDURE

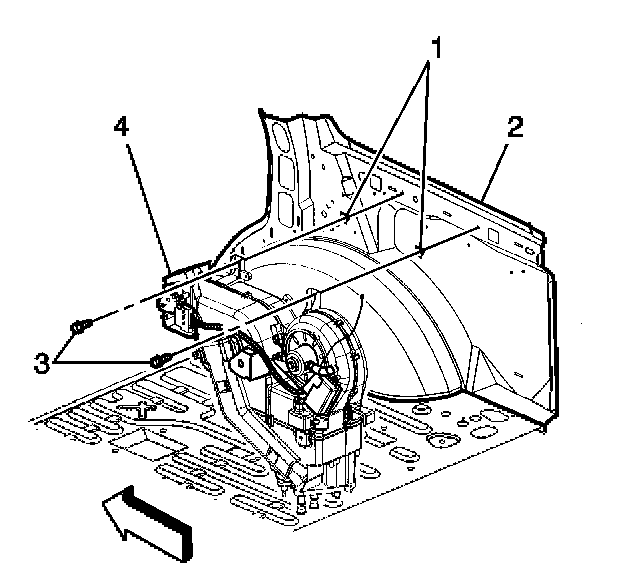

1. Remove the auxiliary HVAC module (4) from the vehicle. Service and Repair




2. Remove the air temperature actuator (1) from the auxiliary HVAC module.

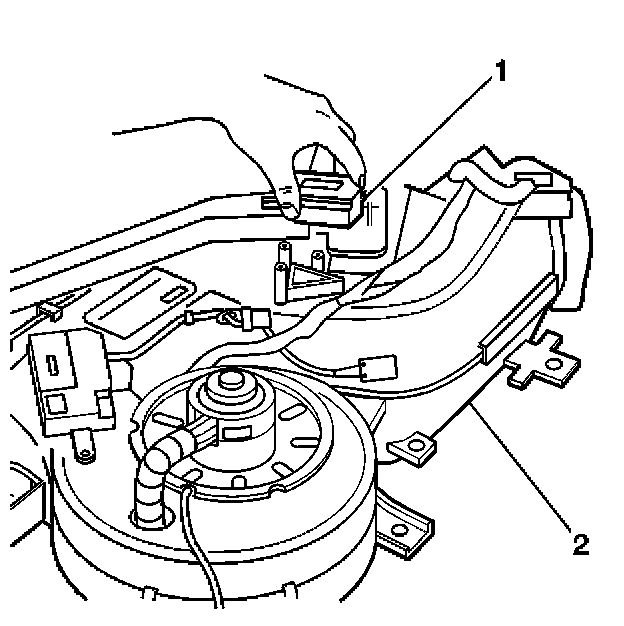

3. Remove the heater core cover (1) from the auxiliary HVAC module.

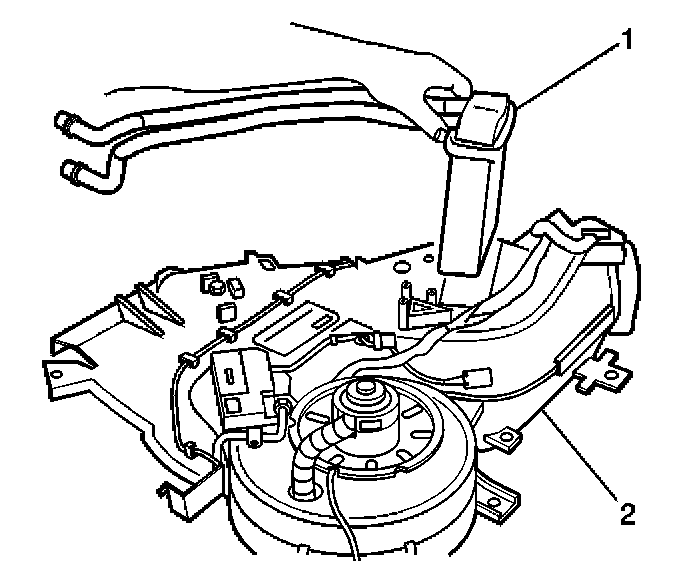

4. Remove the heater core (1) from the auxiliary HVAC module.

INSTALLATION PROCEDURE




1. Install the heater core (1) to the auxiliary HVAC module.




2. Install the heater core cover (1) to the auxiliary HVAC module.




3. Install the air temperature actuator (1) to the auxiliary HVAC module.

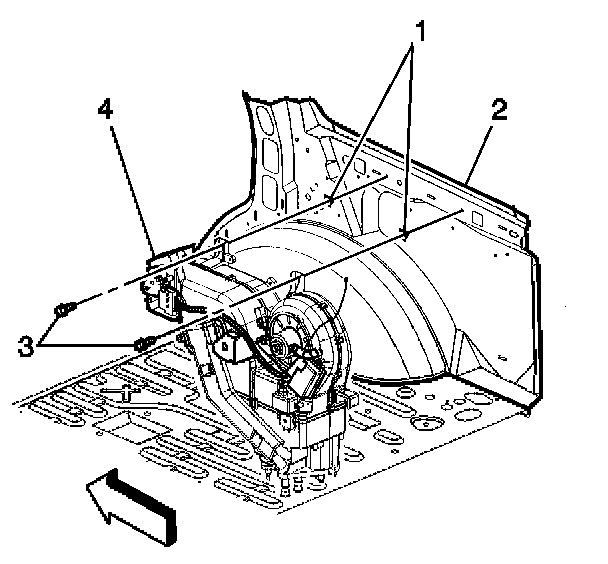

4. Install the auxiliary HVAC module assembly (4) to the vehicle.
