Home
>>
Chevy Truck
>>
2003
>>
C 3500 Truck 2WD V8-6.6L DSL Turbo VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Engine Harness to Transmission
Engine Harness to Transmission

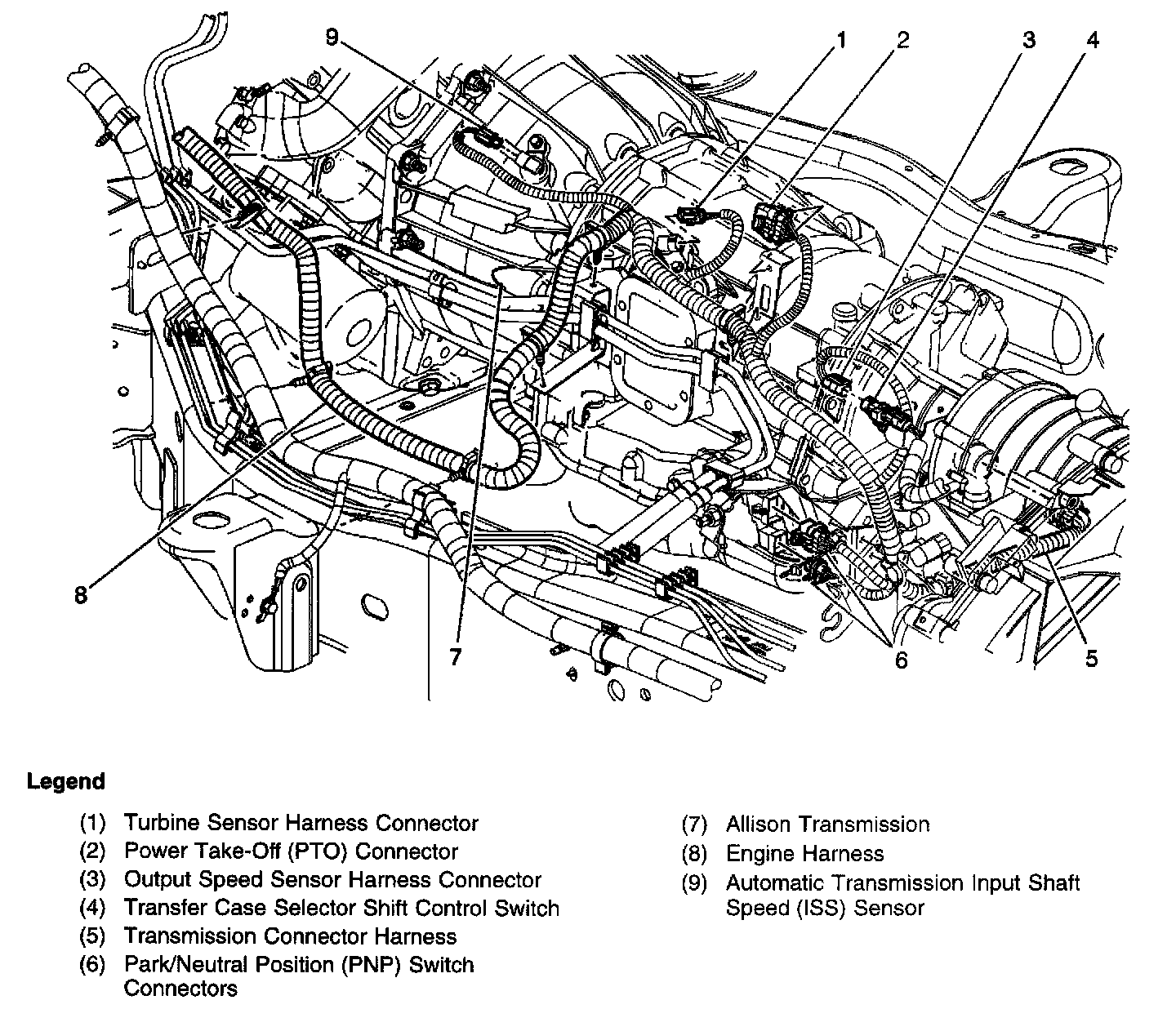

Engine Harness to Transmission-Allison:
