Electronic Throttle Control Module
Electronic Throttle Control Module

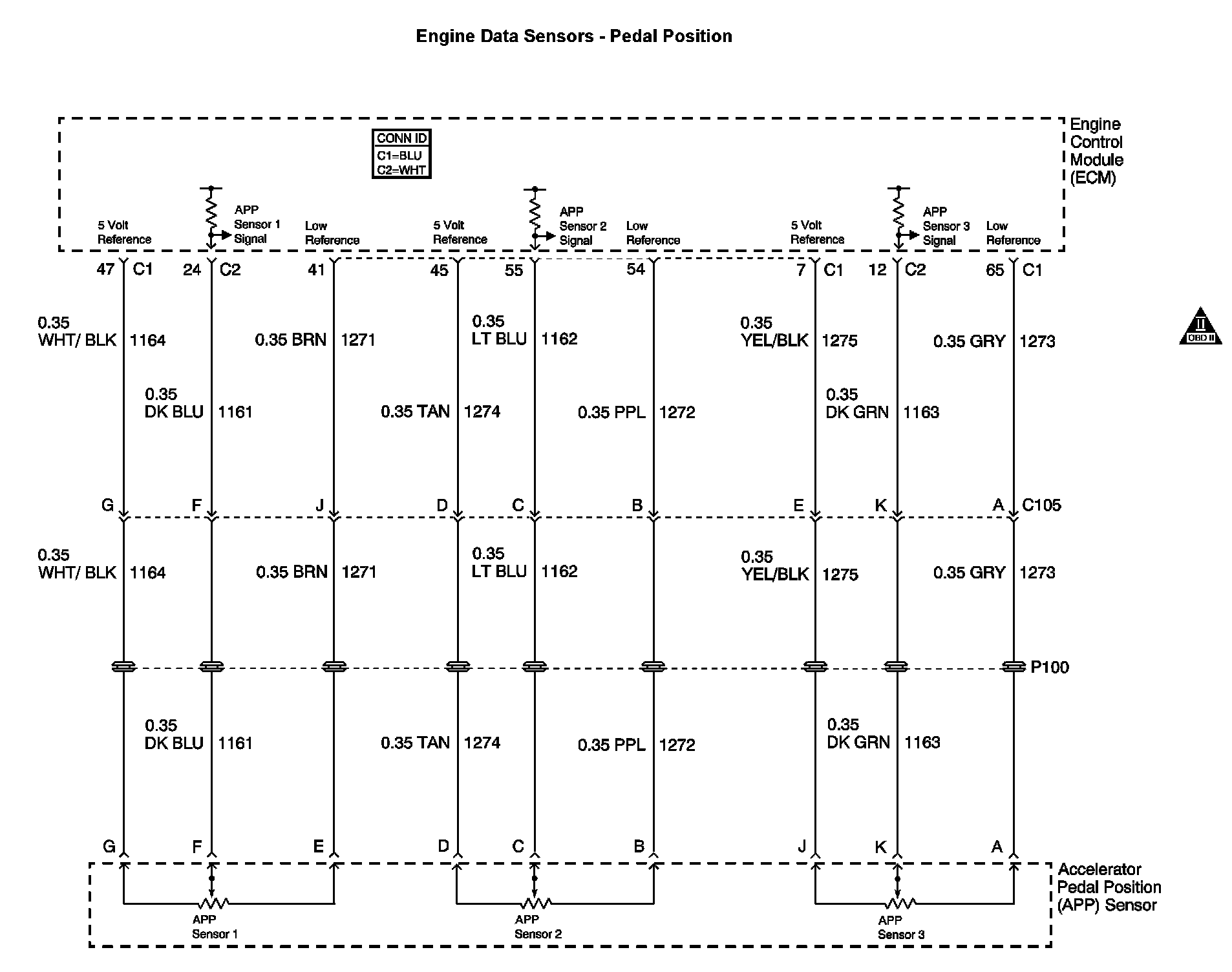

Diagram 5 - Engine Data Sensors - Pedal Position:
