Connector Views

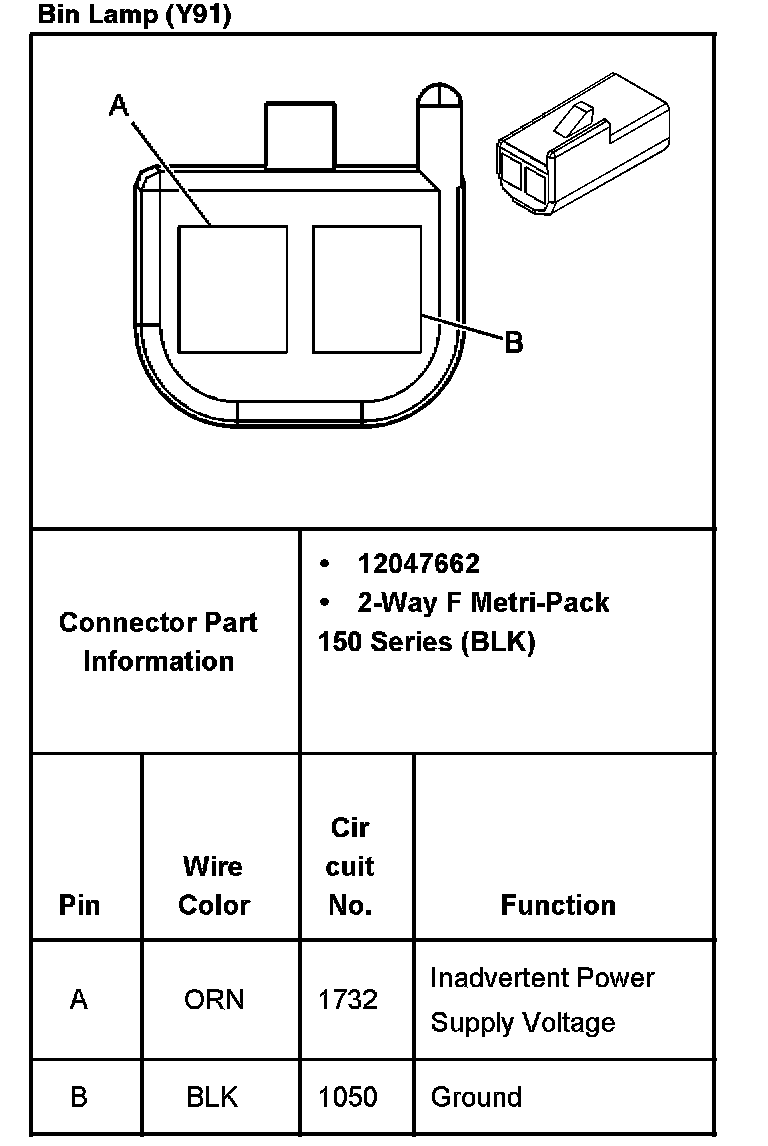

Bin Lamp (With RPO Code Y91):



Courtesy/Reading Lamp - Rear (Crew Cab With RPO Code YE9):
