Home >> Chevy Truck >> 2003 >> C 2500 Truck 2WD V8-6.0L VIN U >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Engine Components - Lower Left Rear

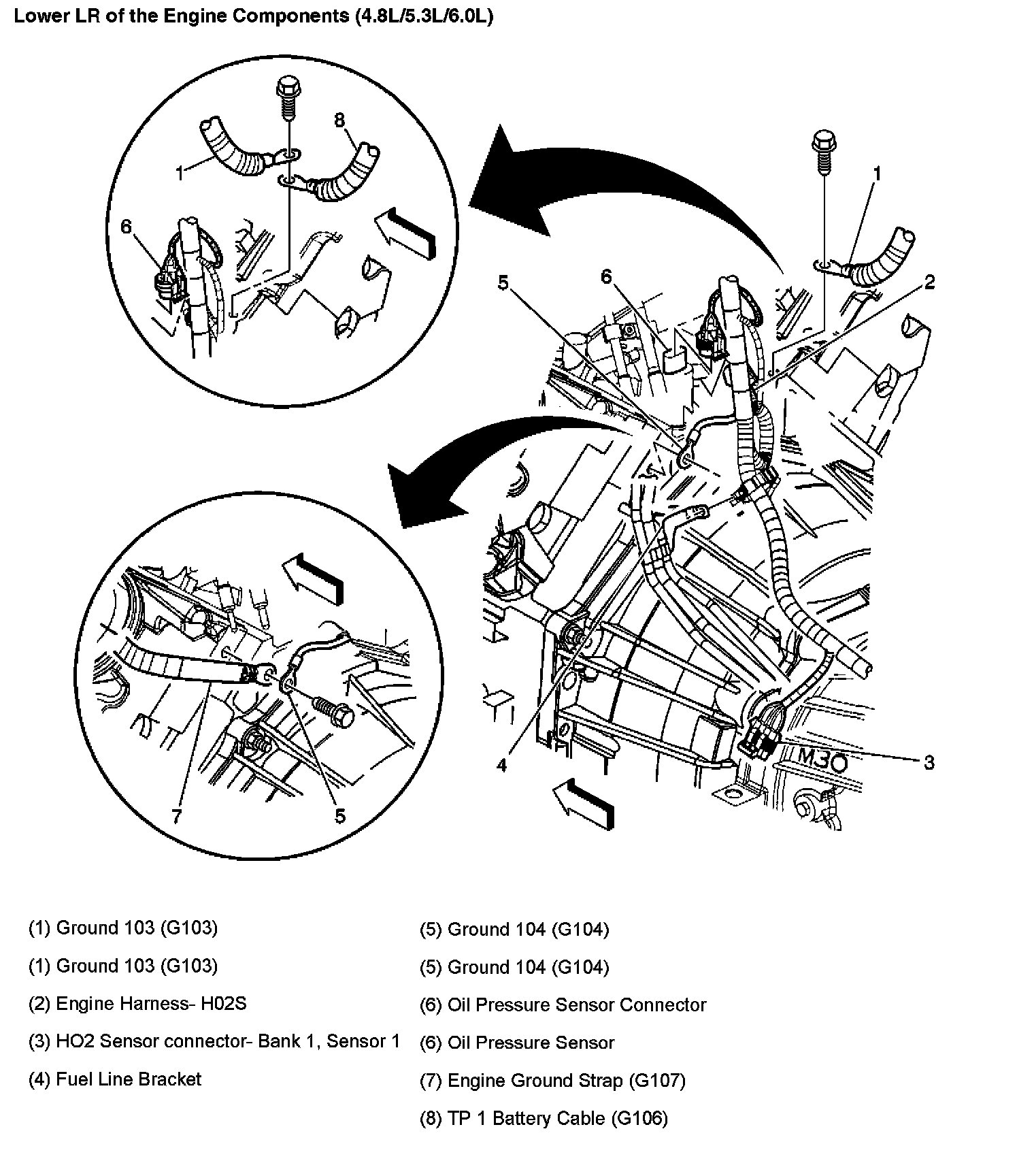

Engine Components - Lower Left Rear

Lower LR Of The Engine Compartment:
