Flex Plate: Service and Repair

Engine Flywheel Replacement

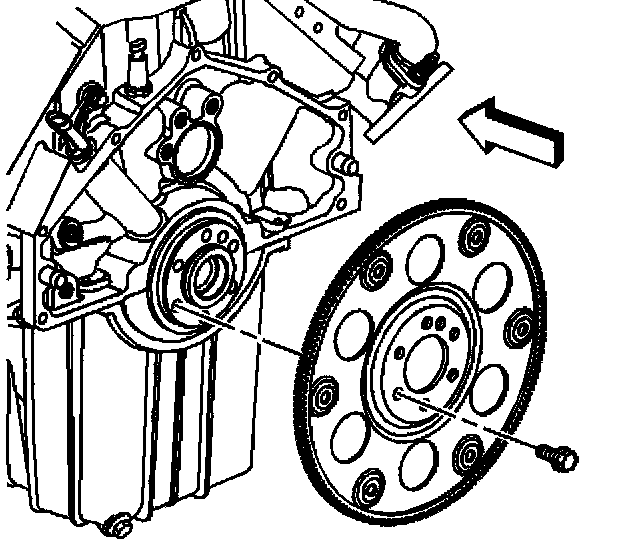

Removal Procedure
1. Remove the transmission.







2. Remove the flywheel bolts.
3. Remove the flywheel.

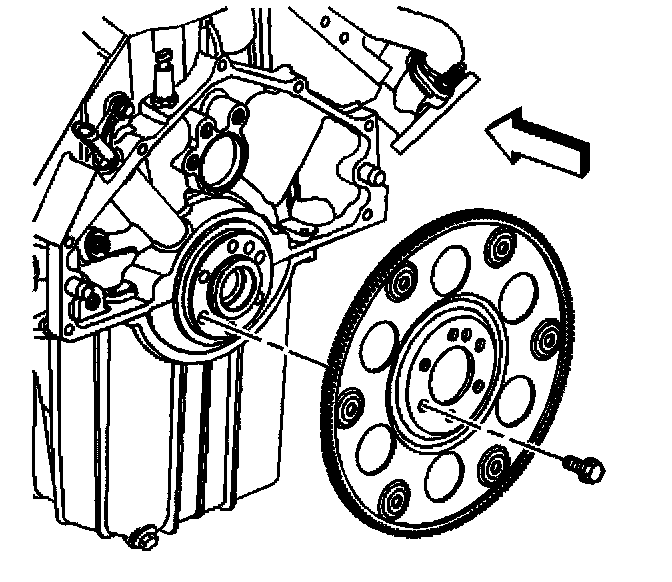

Installation Procedure

Important: "Engine Side" stamped on the flywheel is to be positioned toward the engine.







1. Install the flywheel.

Notice: Refer to Fastener Notice in Service Precautions.
Fastener Notice


2. Install the flywheel bolts.
Tighten the bolts to 100 Nm (74 lb ft).


3. Install the transmission.
