Ambient Temperature Sensor / Switch HVAC
>>
Intake Air Temperature Sensor
>>
Upper Left
Upper Left

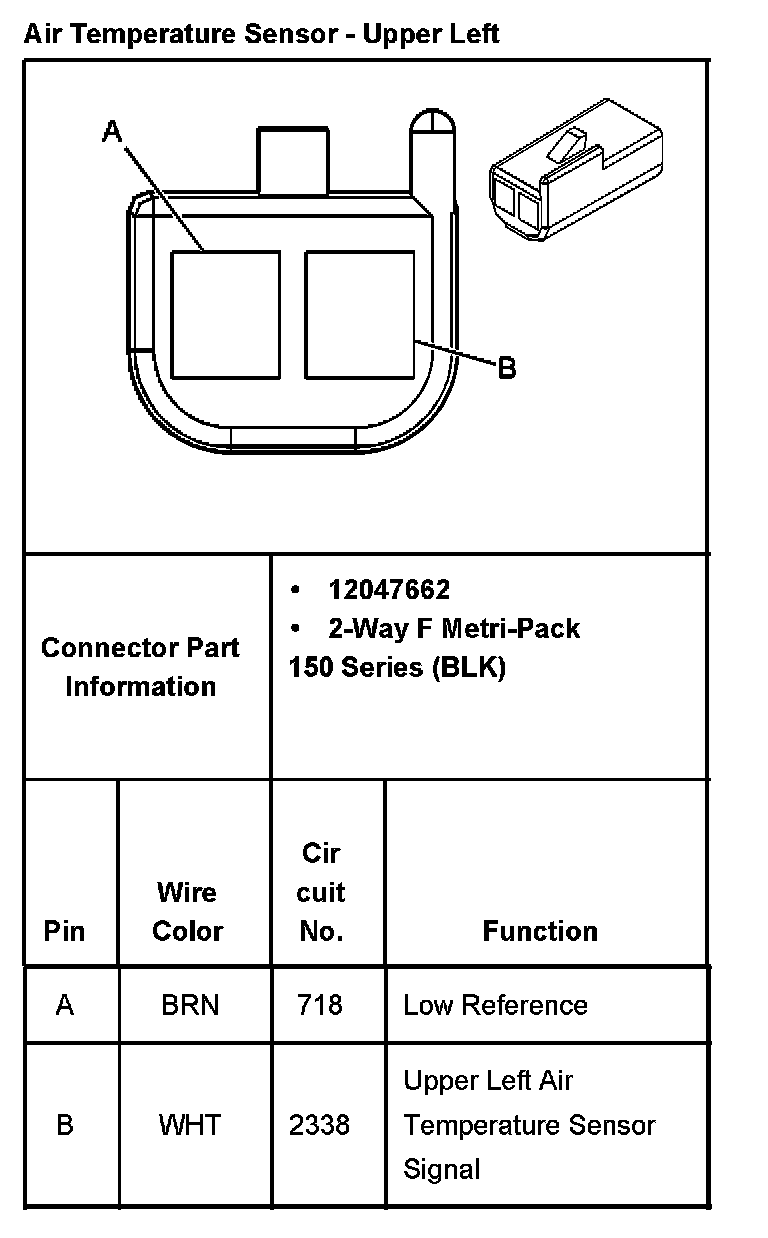

Air Temperature Sensor - Upper Left:
