Assist Handle Replacement - End Gate

ASSIST HANDLE REPLACEMENT - END GATE

REMOVAL PROCEDURE
1. Open the cargo box stowage lid.

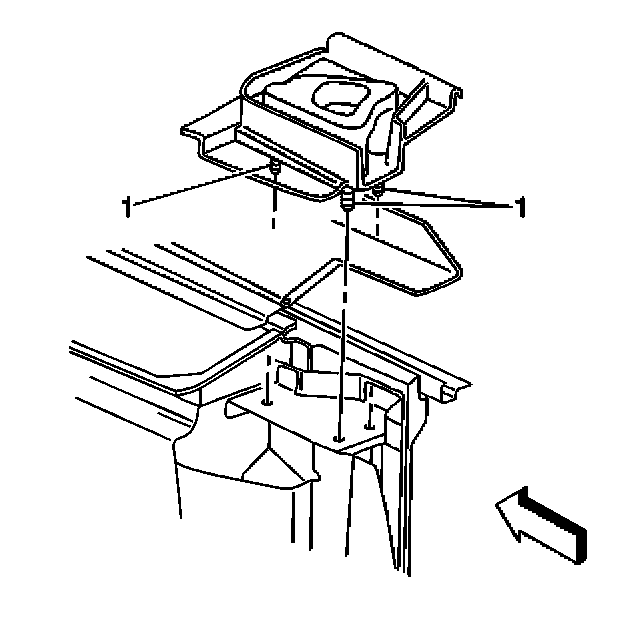

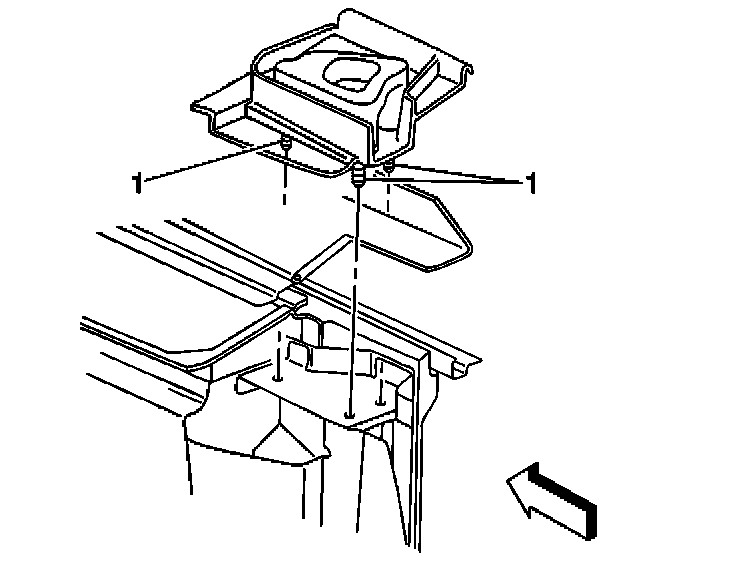

2. Remove the retaining bolts (1) from the assist handle.
3. Remove the assist handle from the endgate.

INSTALLATION PROCEDURE




1. Install the assist handle to the endgate cap.
2. Install the bolts (1) to the assist handle in order to attach the assist handle to the endgate cap.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the bolts to 9 N.m (80 lb in).

3. Close the cargo box stowage lid.
