Steering Damper: Service and Repair
STEERING DAMPER REPLACEMENTTOOLS REQUIRED
- J 24319-B Universal Steering Linkage Puller
- J 29193 Steering Linkage Installer-12 mm
REMOVAL PROCEDURE
1. Raise the vehicle. Support the vehicle with safety stands. Refer to Vehicle Lifting.
2. Remove the engine protection shield, if equipped.

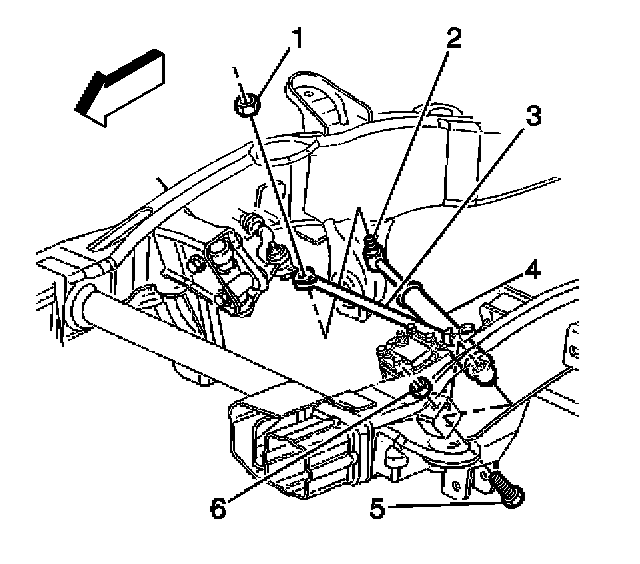

3. Remove the steering damper (2) ball stud nut (1).
IMPORTANT: Do not reuse the nut.

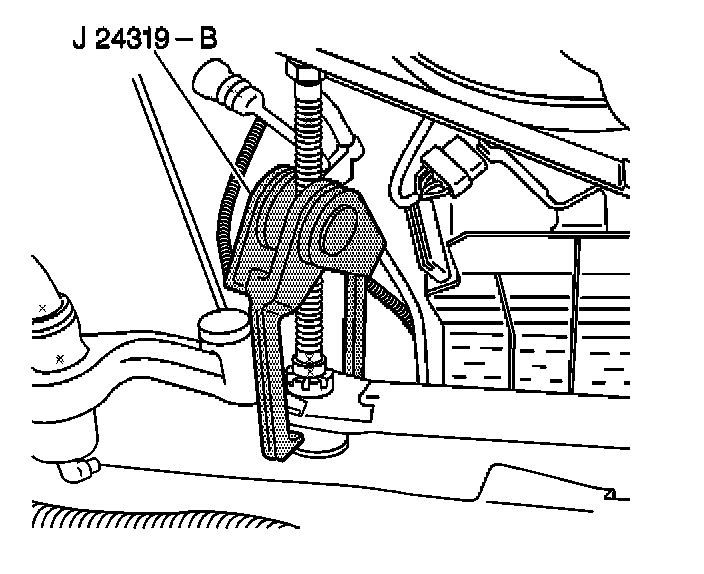

4. Remove the steering damper ball stud from the relay rod using the J 24319-B.

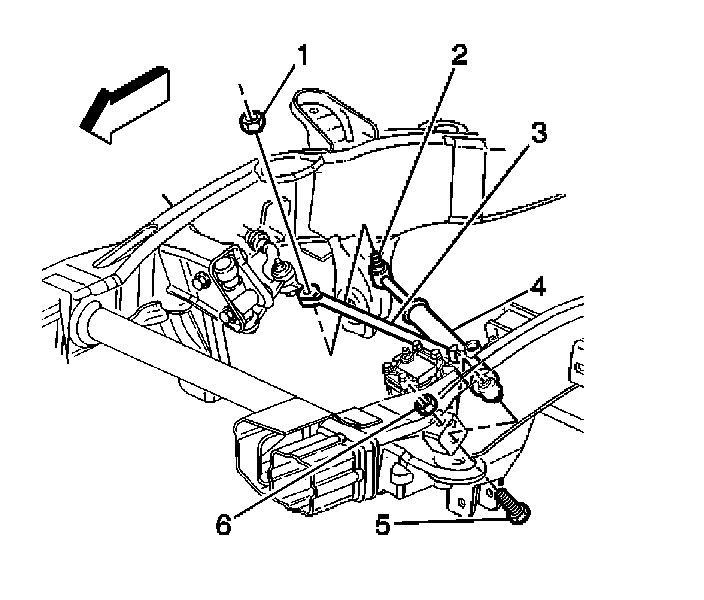

5. Remove the steering damper mounting bolt (5) and the nut (6).
IMPORTANT: Do not reuse the nut.
6. Remove the steering damper (4) from the vehicle.
7. Inspect the following parts:
- The steering damper for leaks and damage
- The mounting bolts and the nuts for damage or corrosion
INSTALLATION PROCEDURE

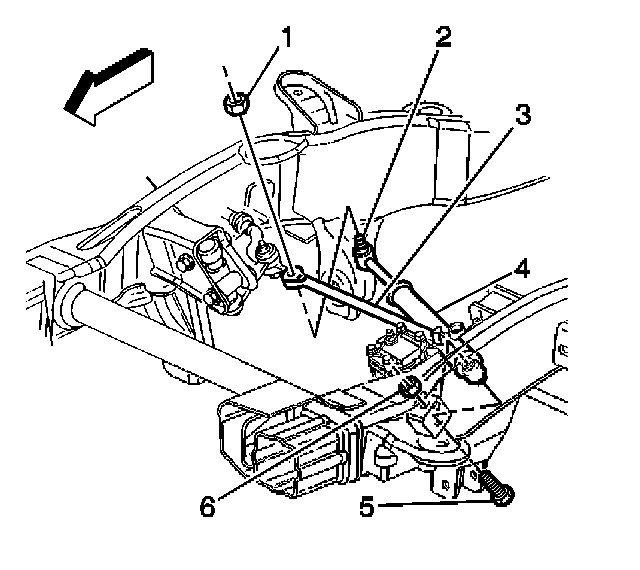

1. Install the steering damper (4).
2. Install the mounting bolt (5) and a new prevailing torque nut (6).
3. Install the steering damper ball stud (2) to the relay rod (3).

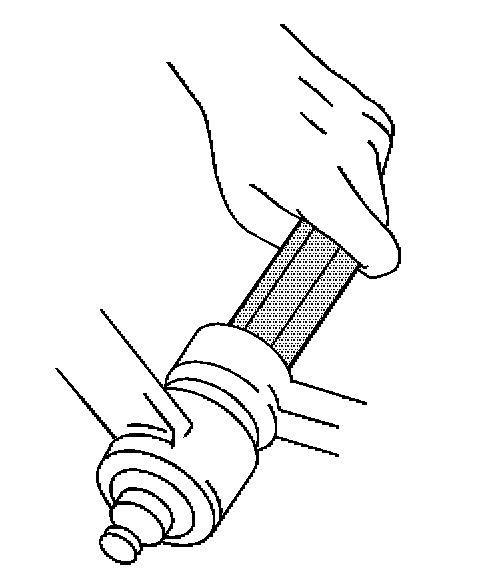

4. Install the J 29193.
NOTE: Refer to Fastener Notice in Service Precautions.
5. Tighten the steering linkage installer in order to seat the ball stud in the relay rod.
Tighten
Tighten the installer to 54 N.m (40 lb ft).
6. Remove the J 29193.
7. Install the prevailing torque nuts.
Tighten
- Tighten the mounting nut to 40 N.m (30 lb ft).
- Tighten the ball stud nut to 40 N.m (30 lb ft).
8. Install the engine protection shield, if equipped.
9. Lower the vehicle.
