Idler Arm: Service and Repair

IDLER ARM REPLACEMENT

TOOLS REQUIRED
- J 24319-B Universal Steering Linkage Puller
- J 29193 Steering Linkage Installer (12 mm)
- J 29194 Steering Linkage Installer (14 mm)

REMOVAL PROCEDURE

NOTE: Do not attempt to free the ball stud by using a pickle fork or wedge type tool, because seal or bushing damage could result. Use the proper tool to separate all ball joints.

1. Raise the vehicle. Refer to Vehicle Lifting.




2. Remove the engine protection shield, if equipped.

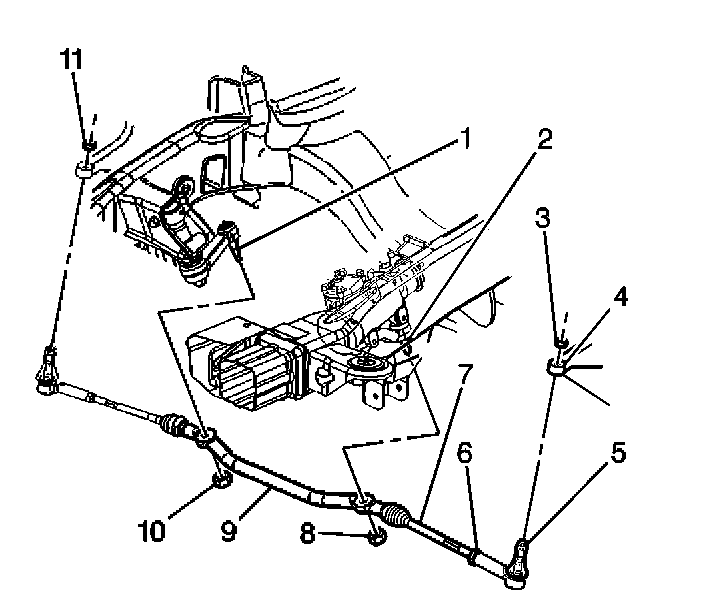

3. Remove the idler arm ball stud nut (10). Do not reuse the idler arm ball stud nut.

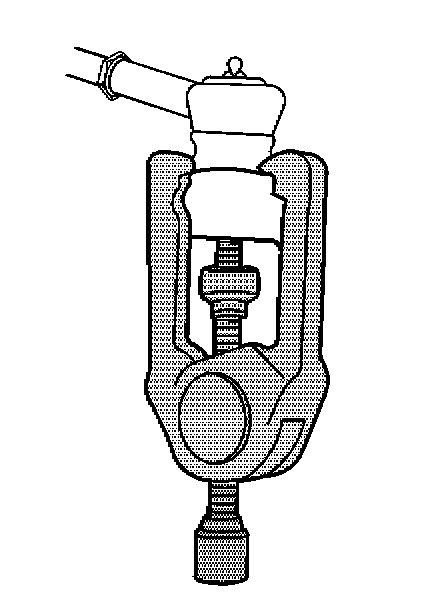

4. Remove the idler arm from the relay rod using the J 24319-B.

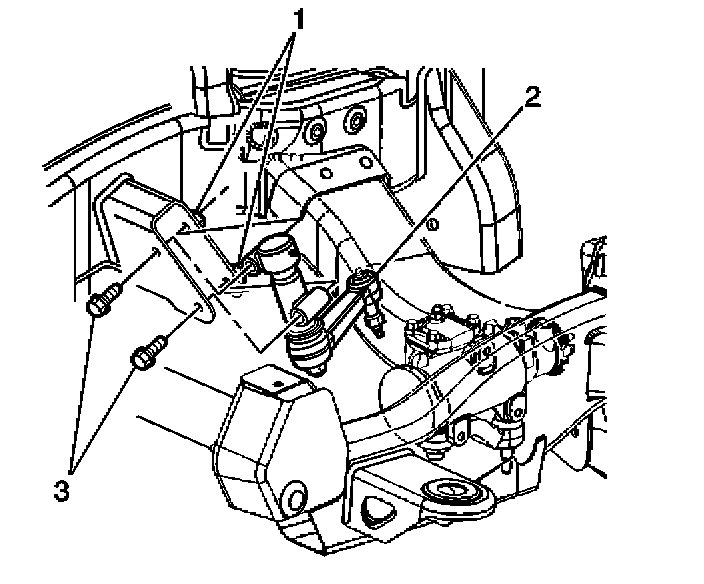

5. Remove the idler arm frame bolts (3) and the nuts (1).
6. Remove the idler arm (2) from the vehicle.

INSTALLATION PROCEDURE




1. Position the idler arm (2) on the frame.
2. Install the frame bolts (3) and the nuts (1) to the idler arm.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the frame bolts to 99 N.m (73 lb ft).

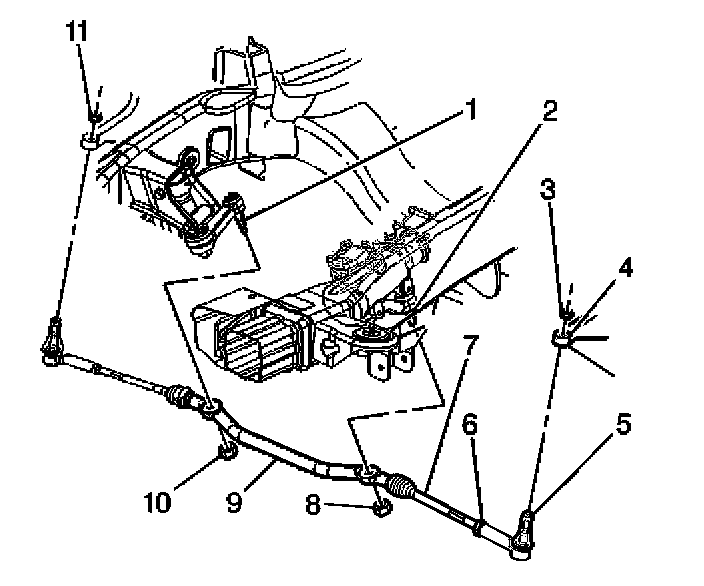

3. Install the relay rod (9) to the idler arm ball stud (1).
Ensure the seal is on the stud.

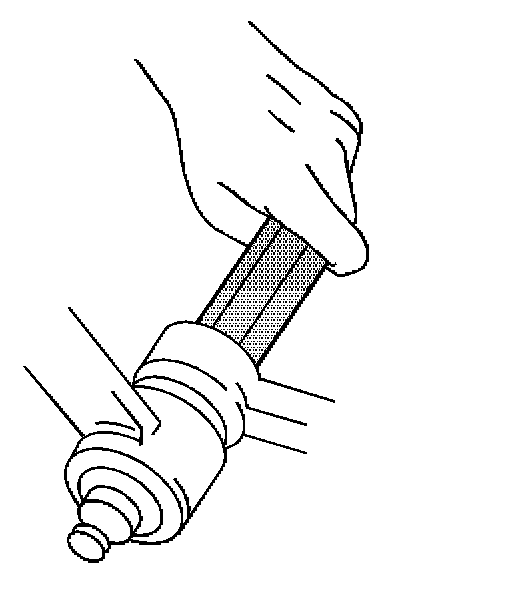

4. Use the J 29193 in order to seat the tapers.

Tighten
Tighten the J 29193 or the J 29194 to 54 N.m (40 lb ft) in order to seat the tapers.

5. Install the new idler arm ball stud prevailing torque nut to the idler arm ball stud.

Tighten
Tighten the nut to 62 N.m (46 lb ft).

6. Install the engine protection shield, if equipped.
7. Lower the vehicle.
8. Check the wheel alignment. Refer to Measuring Wheel Alignment (With Rear Wheel Steering) Measuring Wheel Alignment (Without Rear Wheel Steering) in Wheel Alignment.
