Exhaust Gas Recirculation (EGR) Valve

REMOVAL PROCEDURE




1. Remove the engine sight shield.

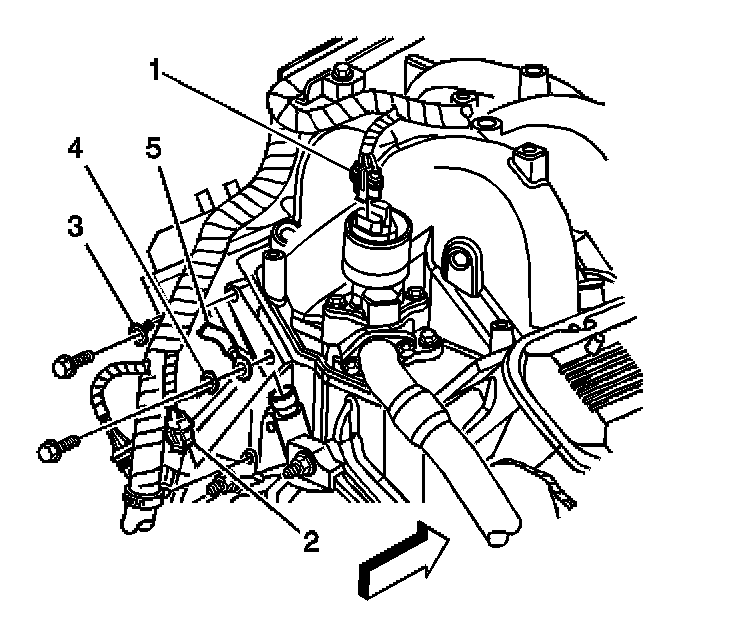

2. Disconnect the exhaust gas recirculation (EGR) valve electrical connector (1).

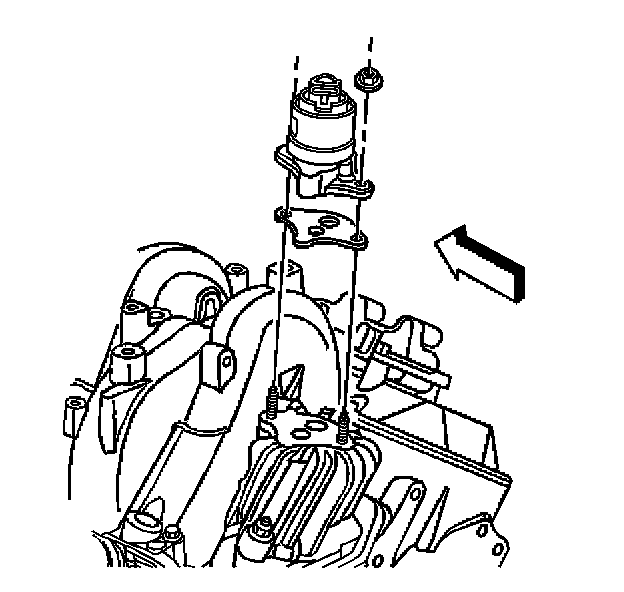

3. Remove the EGR valve nuts.
4. Remove the EGR valve.
5. Remove the EGR gasket from the adapter bracket.
6. Clean the EGR adapter bracket.

INSTALLATION PROCEDURE

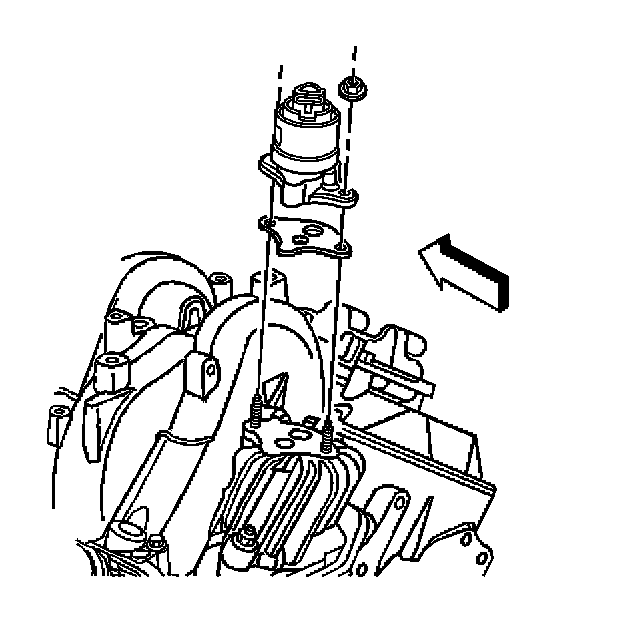

1. Install a NEW EGR gasket onto the adapter bracket.
2. Install the EGR valve.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the EGR valve nuts.

Tighten
Tighten the nuts to 22 N.m (16 lb ft).




4. Connect the EGR valve electrical connector (1).
5. Install the engine sight shield.
