Evaporative Emission Control Canister: Service and Repair

REMOVAL PROCEDURE




1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

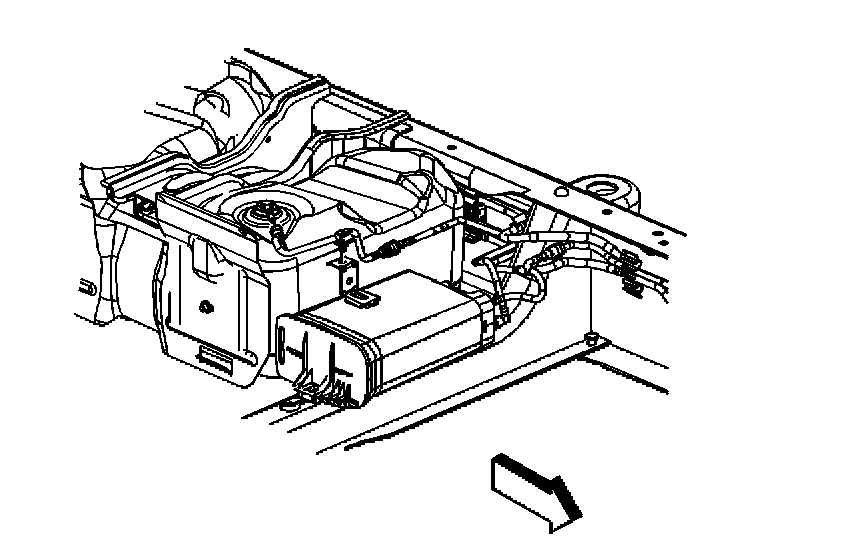

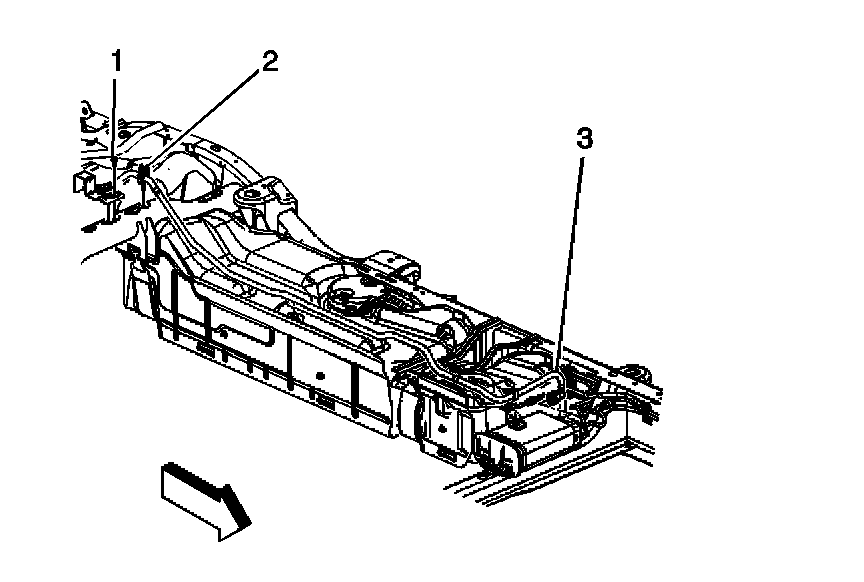

2. Disconnect the evaporative emission (EVAP) canister vent pipe (3) from the canister.
3. Remove the vent pipe clip from the canister bracket.




4. Remove the EVAP pipe clip from the canister bracket.

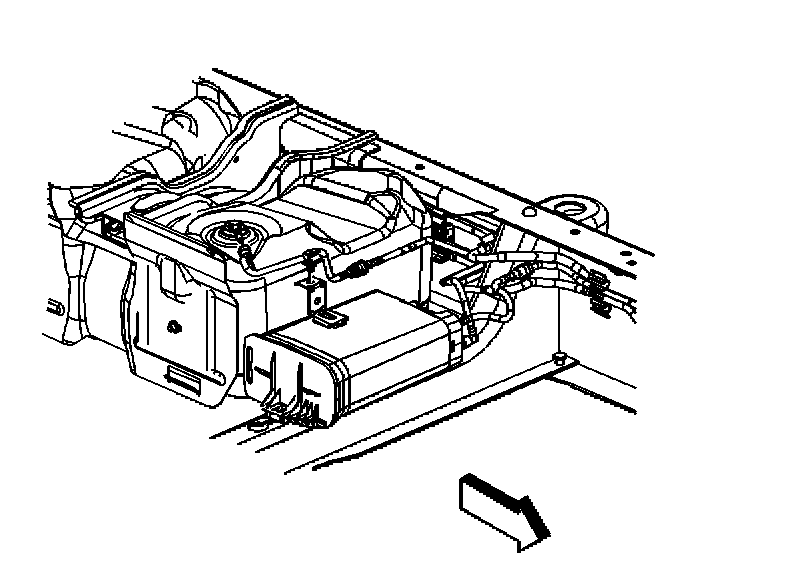

5. Disconnect the EVAP canister pipe from the canister.
6. Disconnect the EVAP canister pipe from the EVAP/fuel pipe assembly.

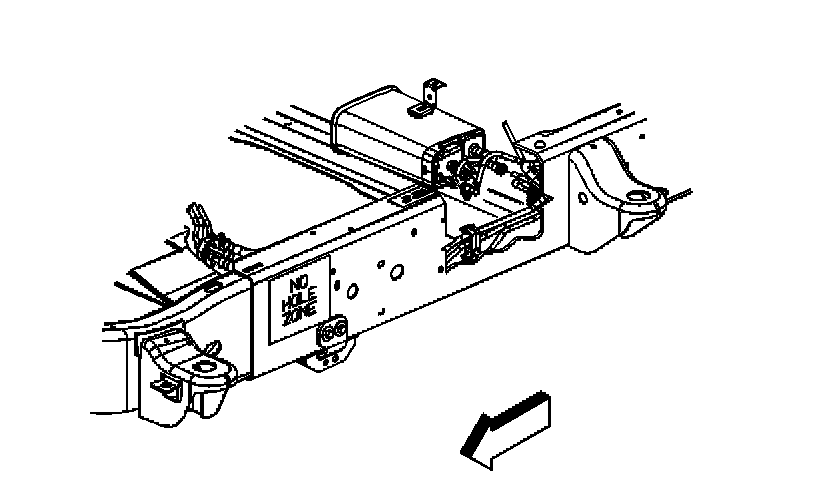

7. Facing toward the front of the vehicle, slide the EVAP canister to the left.
8. Lift up and remove the EVAP canister.
9. Cap the EVAP pipes in order to prevent possible EVAP system contamination.
10. If necessary, remove the small EVAP pipe from the canister.

INSTALLATION PROCEDURE




1. If necessary, install the small EVAP pipe to the canister.
2. Remove the caps from the EVAP pipes.

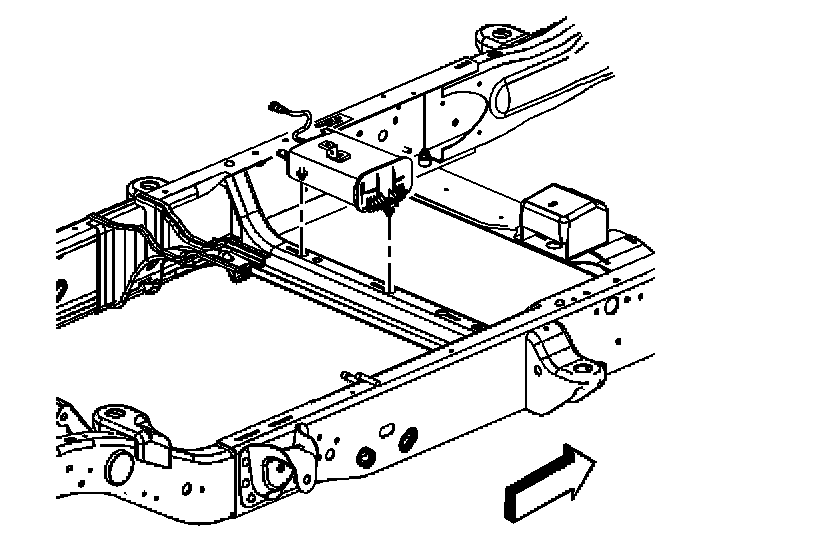

3. Place the EVAP canister into the large frame holes.

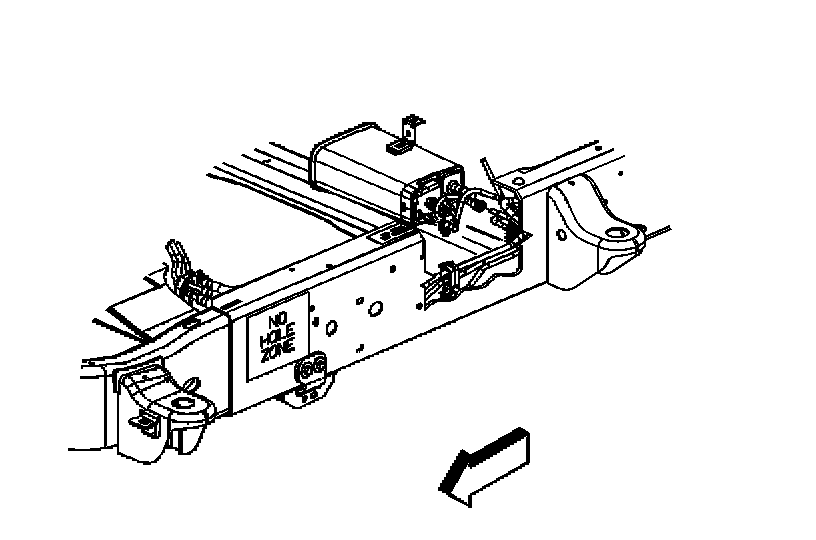

4. Facing toward the front of the vehicle, slide the EVAP canister to the right.




5. Connect the EVAP canister pipe to the EVAP/fuel pipe assembly.
6. Connect the EVAP canister pipe to the canister.




7. Install the EVAP pipe clip to the canister bracket.




8. Install the vent pipe clip to the canister bracket.

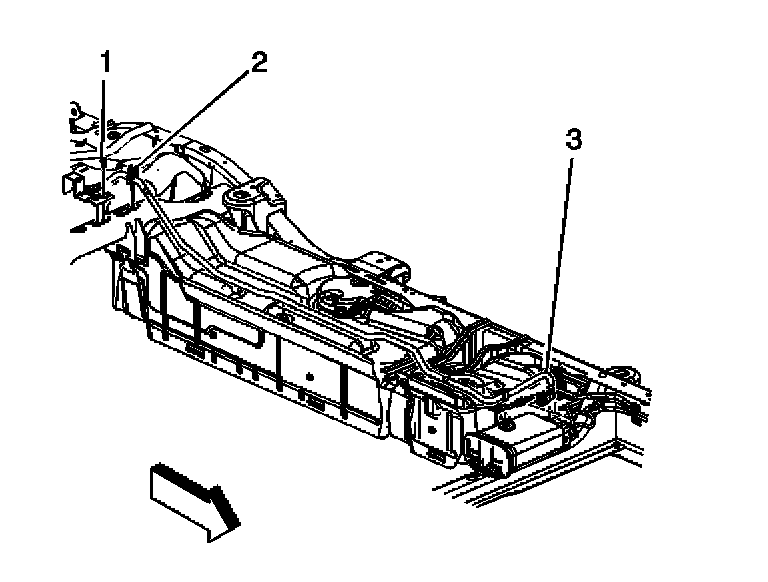

9. Connect the EVAP canister vent pipe (3) to the canister.
10. Lower the vehicle.
