Home
>>
Chevy Truck
>>
2003
>>
Avalanche 2500 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
>>
Diagrams
>>

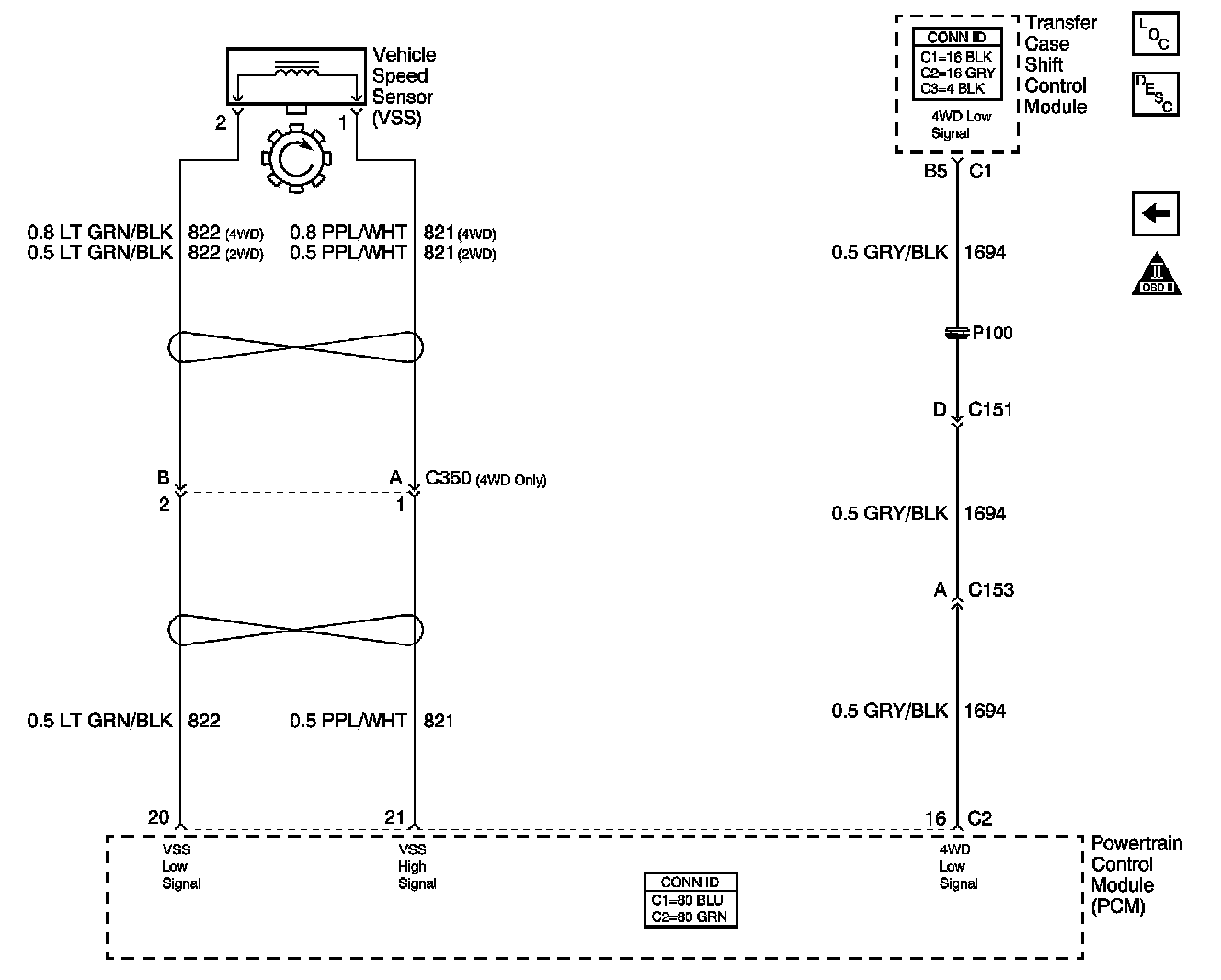

Electrical Diagrams
>>
With 4L80-E / 4L85-E
With 4L80-E / 4L85-E
