Radiator Hose - Outlet

Radiator Hose Replacement - Outlet

Removal Procedure







1. Drain the cooling system.

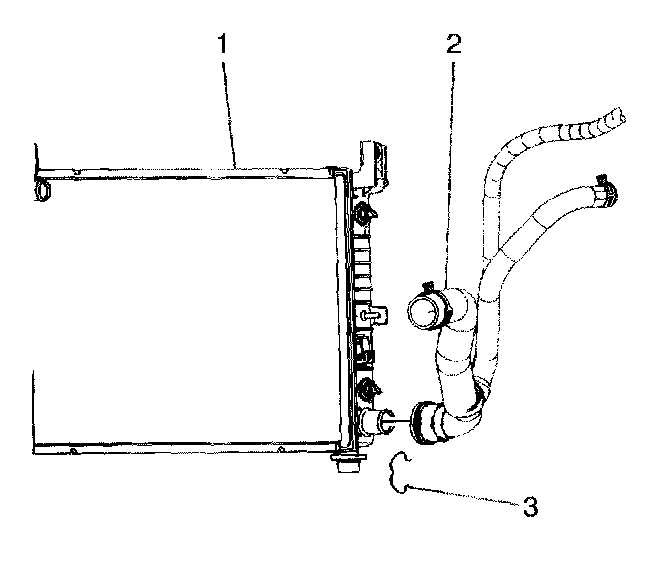

2. Remove the radiator outlet hose from the radiator.

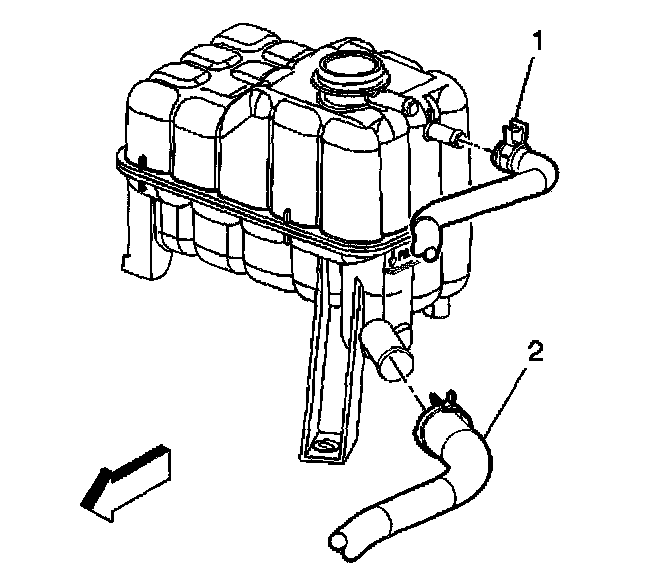

3. Reposition the surge tank outlet hose clamp from the surge tank.
4. Remove the surge tank outlet hose (2) from the surge tank.

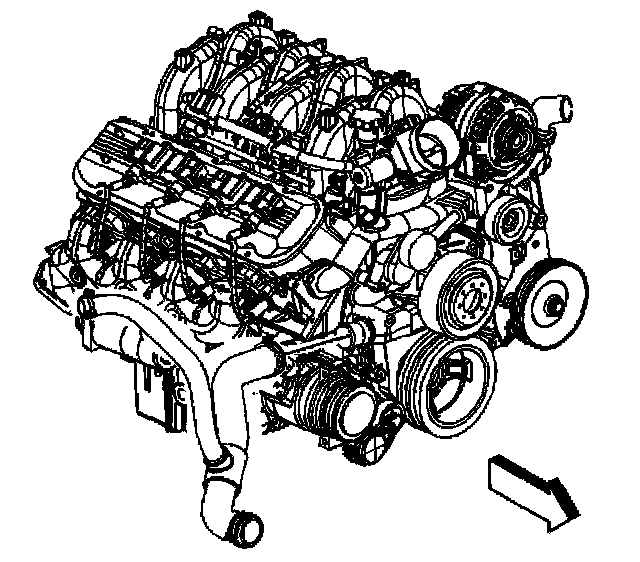

5. Reposition the outlet hose clamp from the water pump.
6. Remove the outlet hose from the water pump.



Installation Procedure

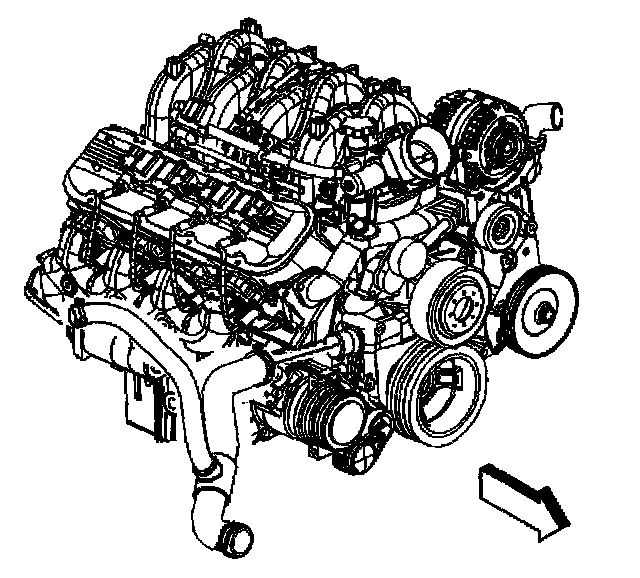

1. Install the outlet hose to the water pump.
2. Reposition the outlet hose clamp to the water pump.







3. Install the surge tank outlet hose (2) to the surge tank.
4. Reposition the surge tank outlet hose clamp to the surge tank.

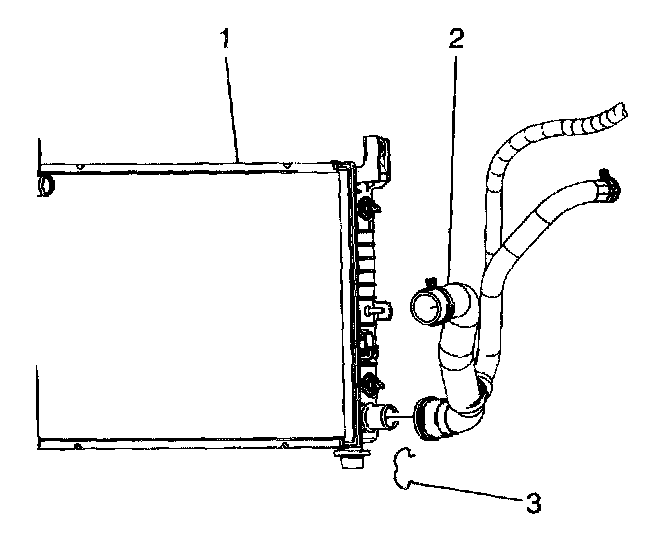

5. install the radiator outlet hose to the radiator.
6. Fill the cooling system.
