Center Mounted Brake Lamp: Service and Repair

REMOVAL PROCEDURE
1. Ensure the headlamp switch is in the OFF position.

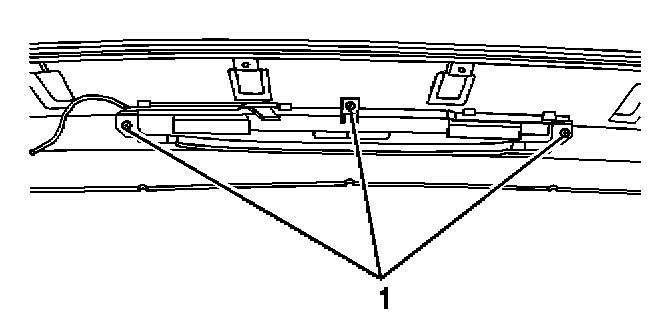

2. Remove the rear compartment cover assembly.

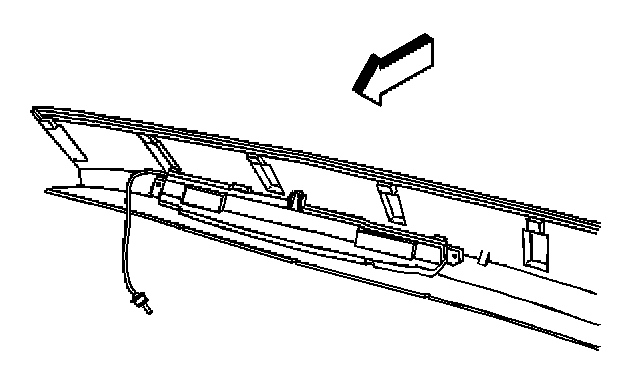

3. Remove the cargo box bridge center bar.




4. Remove the panel assembly from the vehicle.




5. Disconnect the electrical connector from the high mounted stop lamp.

INSTALLATION PROCEDURE

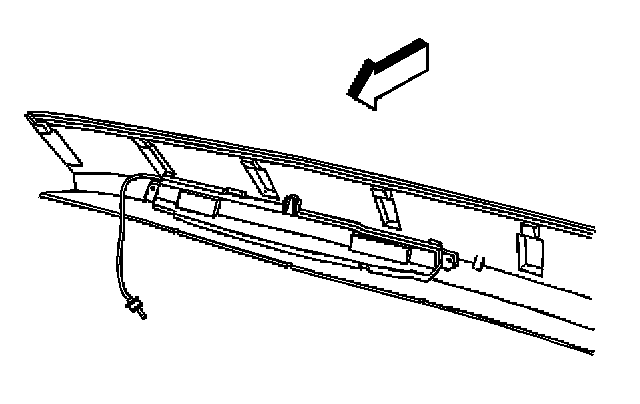

1. Install the stop lamp to the cargo box bridge center bar.
2. Connect the electrical connector.

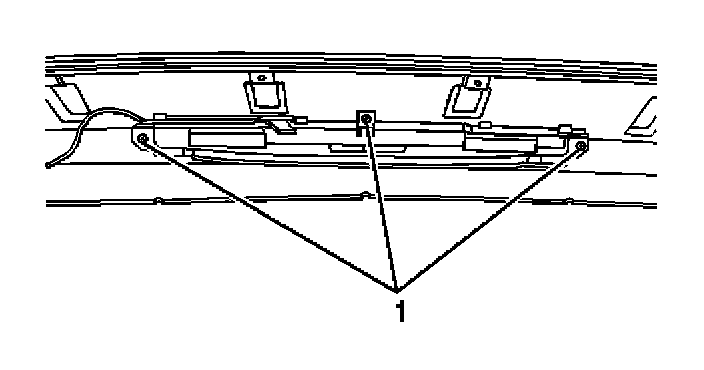

3. Install the panel assembly to the vehicle.
4. Install the cargo box bridge center bar.
5. Inspect the operation.
6. Install the rear compartment cover assembly.
