Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2003
>>
Avalanche 2500 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
4L80-E/4L85-E Automatic Transmission
>>
Forward Clutch Assembly

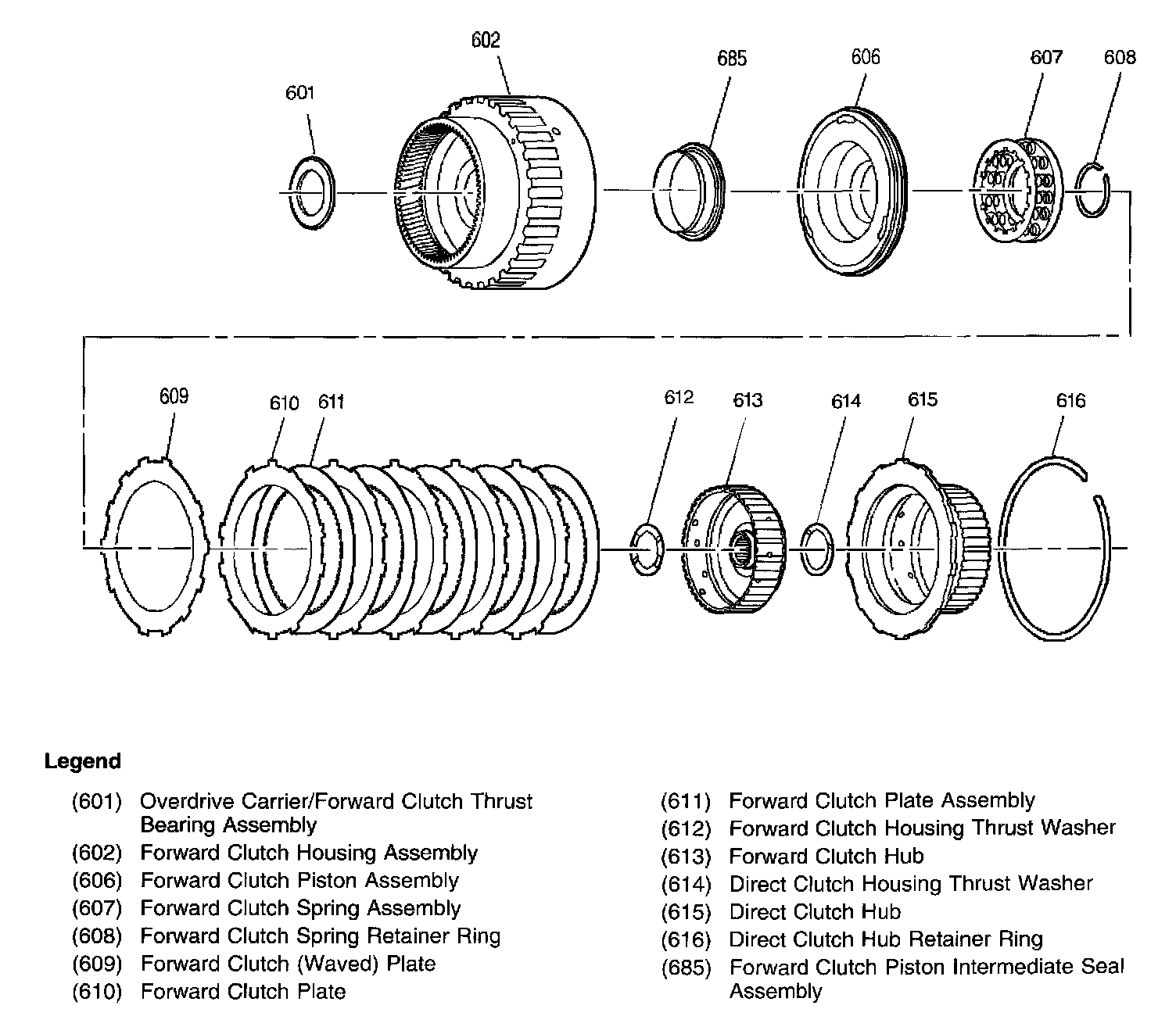

Forward Clutch Assembly
Forward Clutch Assembly:
