Avalanche 2500 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Switch
Seat Temperature Switch

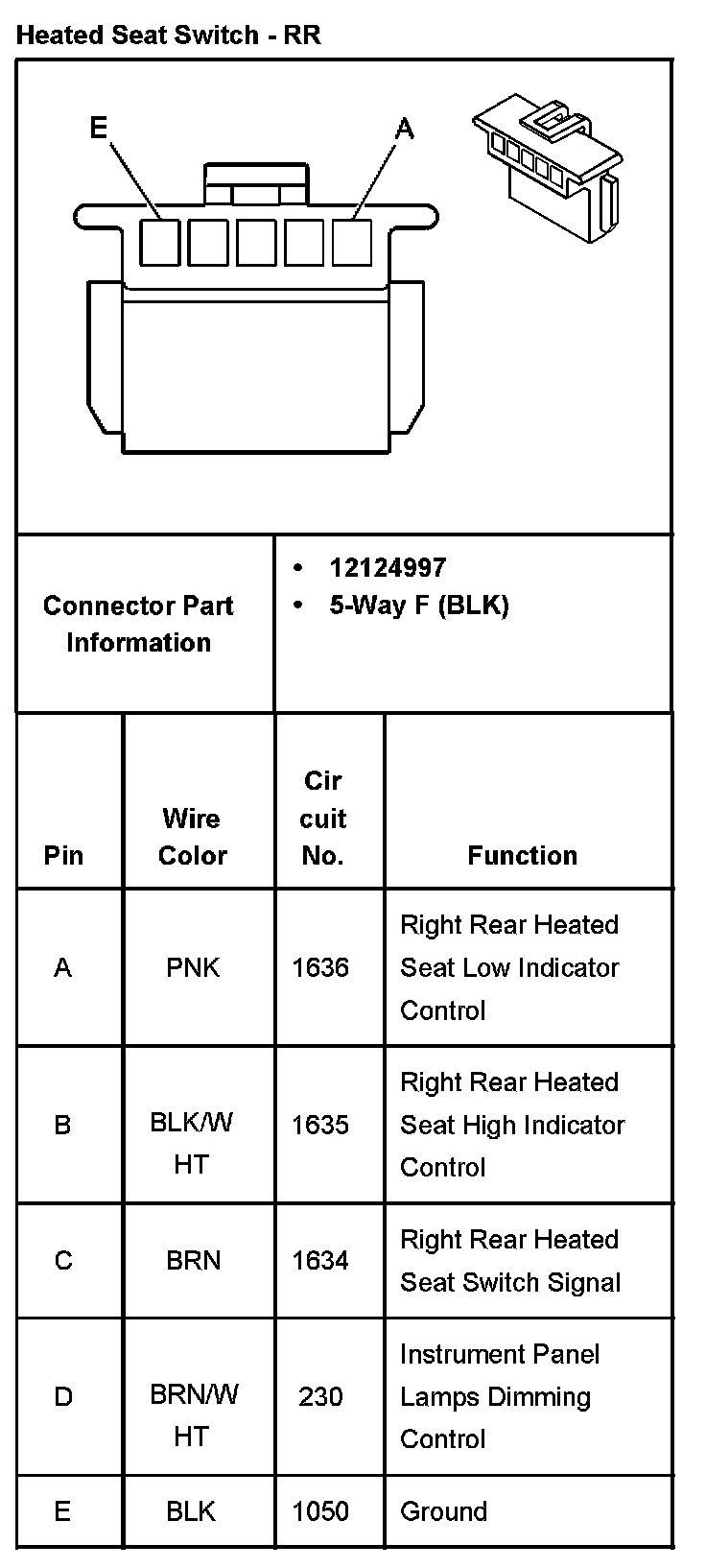

Heated Seat Switch - RR:

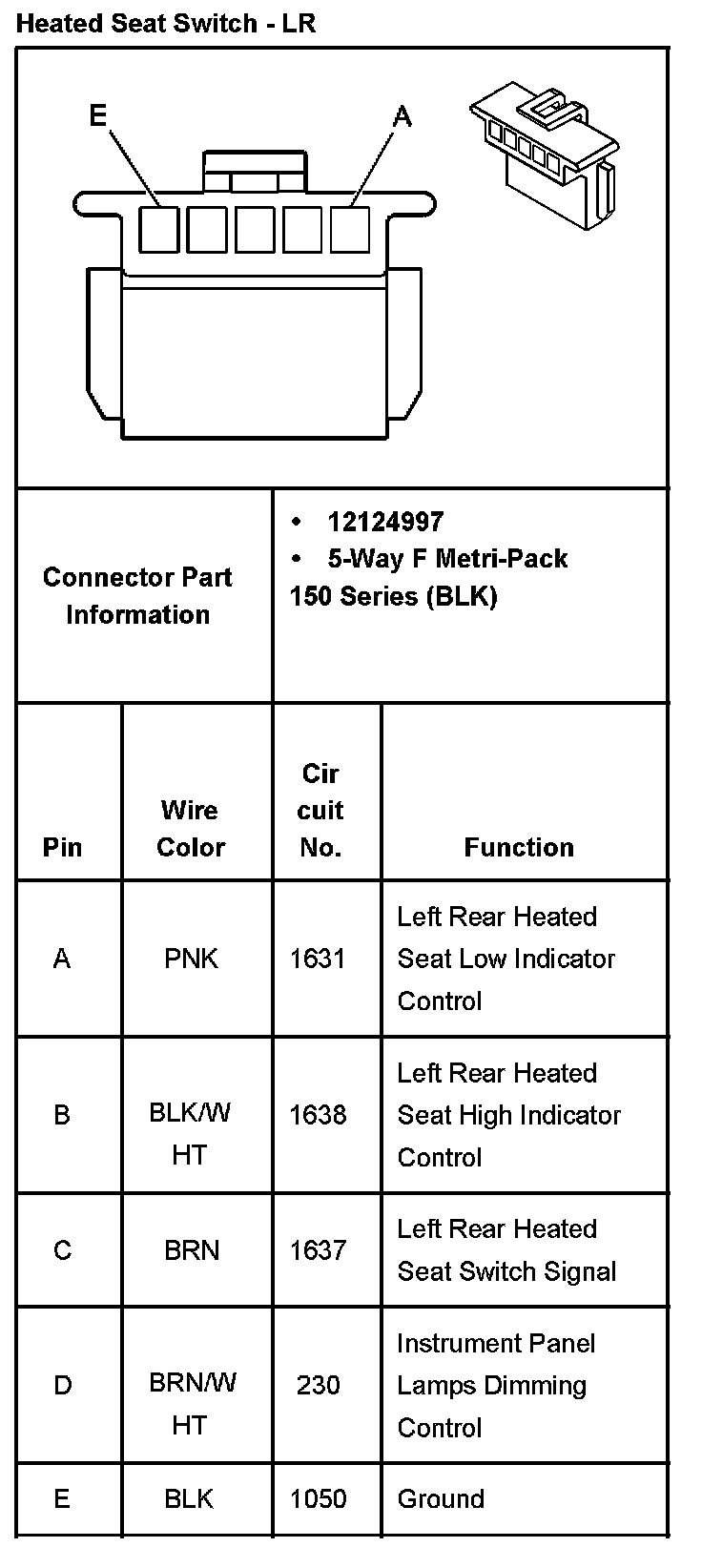

Heated Seat Switch - LR:
