Chevy Truck
>>
2003
>>
Avalanche 2500 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Outside Temperature Display Sensor
Outside Temperature Display Sensor

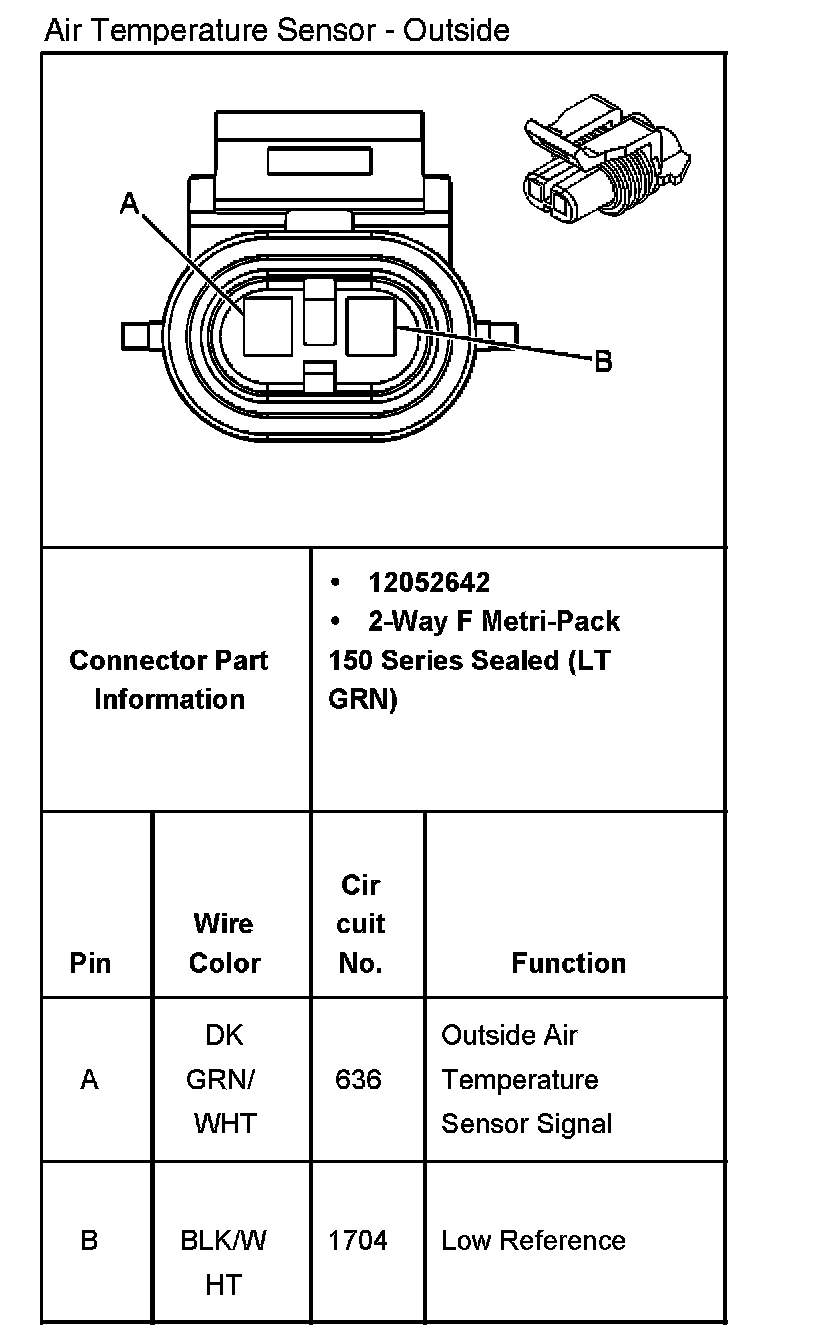

Air Temperature Sensor - Outside:
