Door Switch
>>
Door Ajar Switch - Right Cargo
Door Ajar Switch - Right Cargo

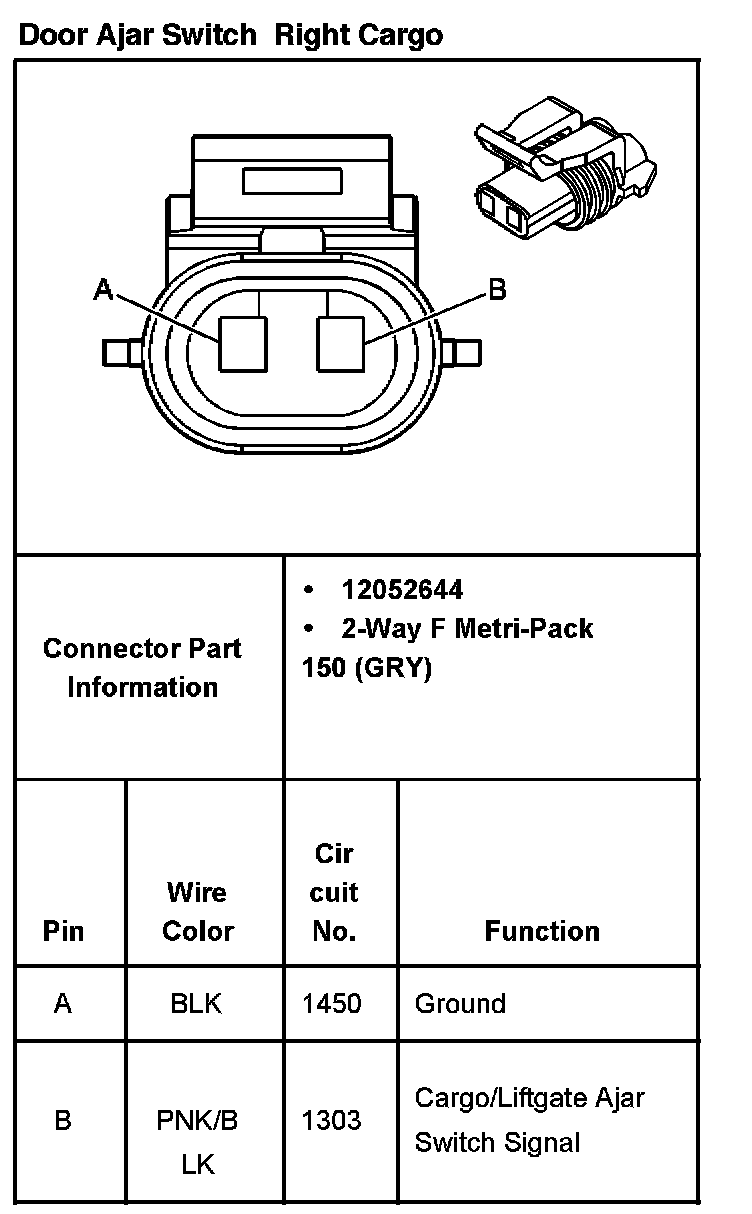

Door Ajar Switch - Right Cargo:
