Clockspring Assembly / Spiral Cable, Air Bag
>>
Inflatable Restraint Steering Wheel Module Coil - C2
Inflatable Restraint Steering Wheel Module Coil - C2

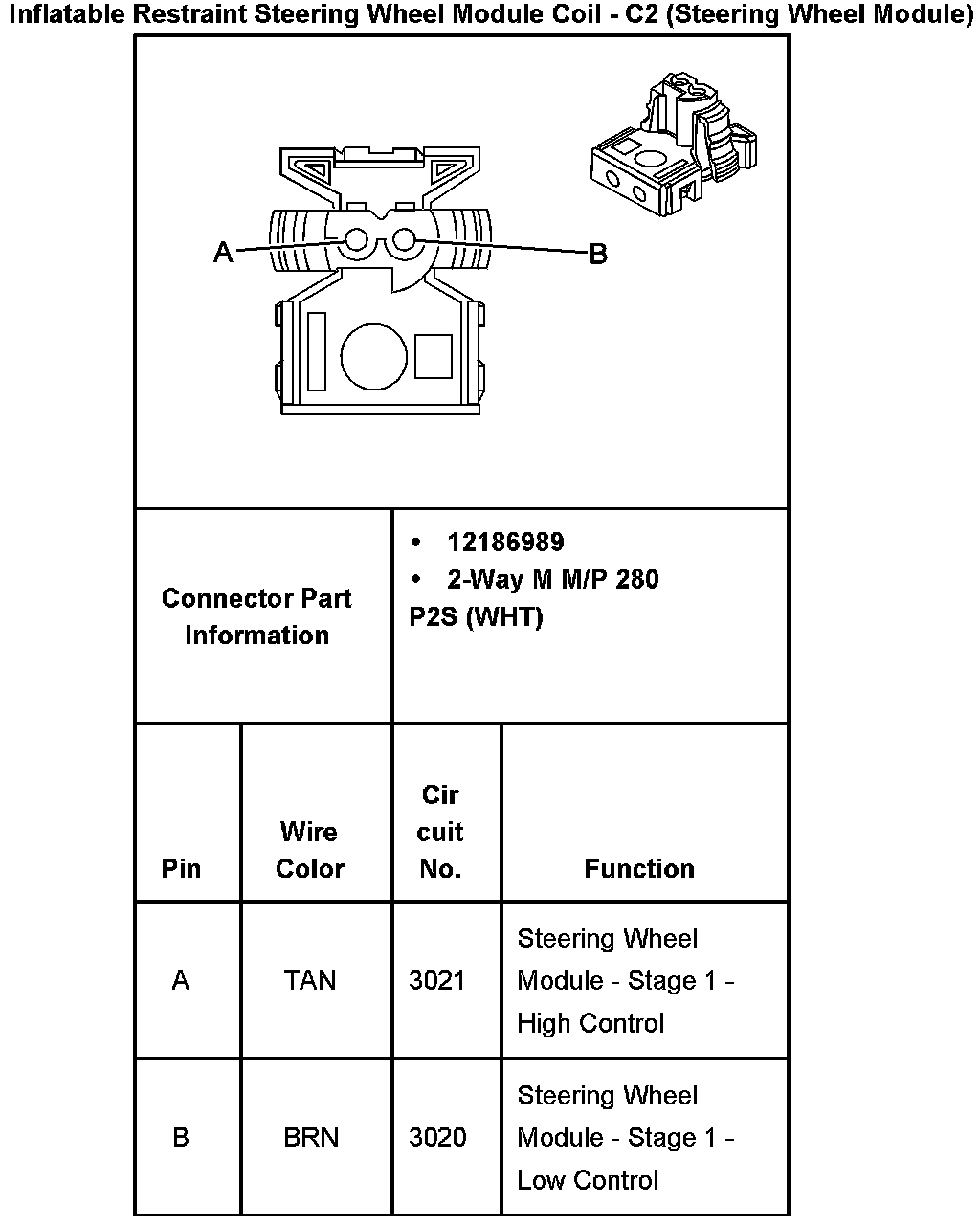

Inflatable Restraint Steering Wheel Module Coil - C2 (Steering Wheel Module):
