Weatherstrip Replacement - Front Door Upper Auxiliary

WEATHERSTRIP REPLACEMENT - FRONT DOOR UPPER AUXILIARY

REMOVAL PROCEDURE
1. Open the door.

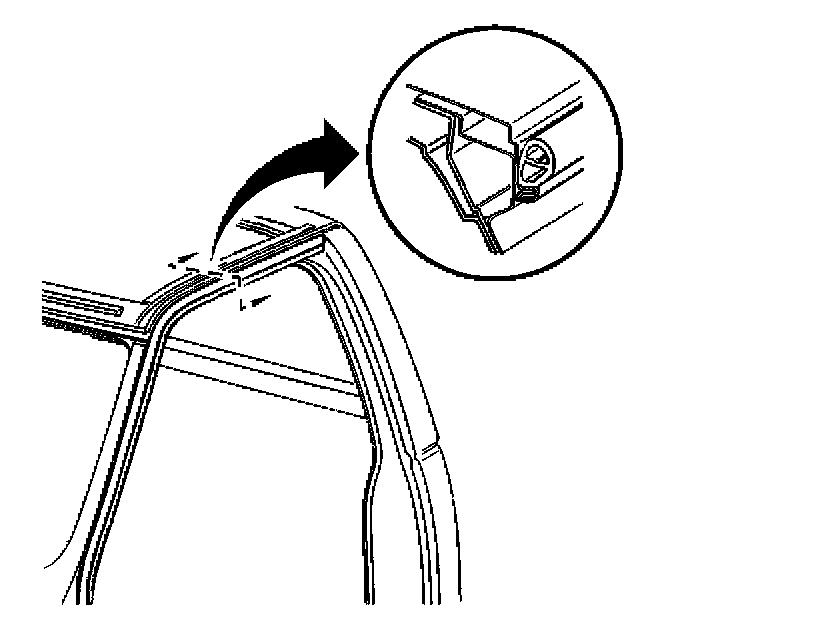

2. Pull the roof drip molding from the pinch-weld flange and the windshield molding flange.

INSTALLATION PROCEDURE

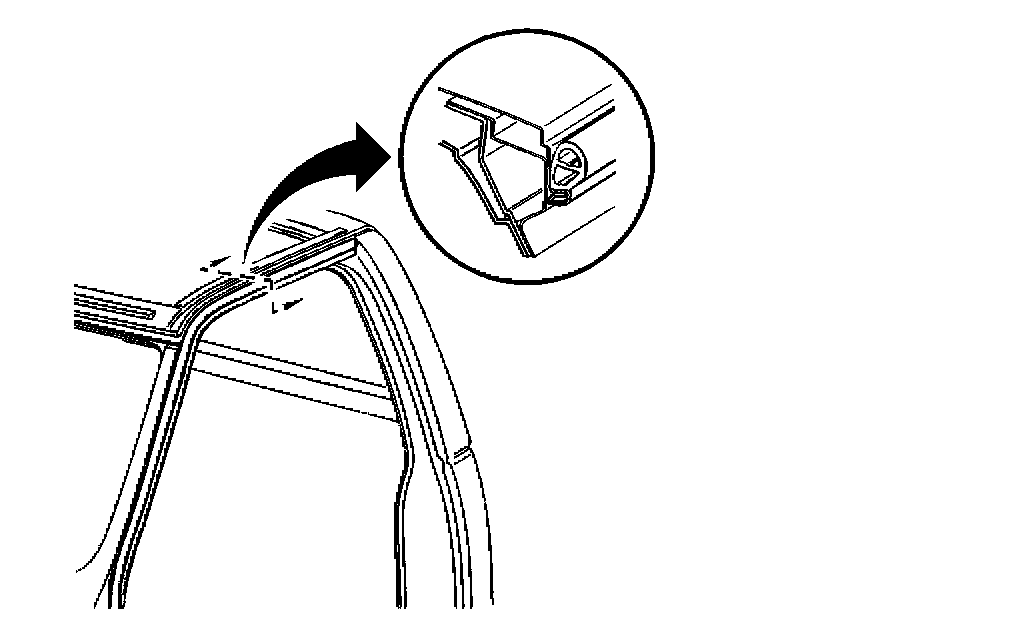

1. Push the roof drip molding over the pinch-weld flange.
2. Close the door.
