Information Center Telltale Assembly Replacement (EXT)

REMOVAL PROCEDURE
1. Remove the rear upper garnish molding.

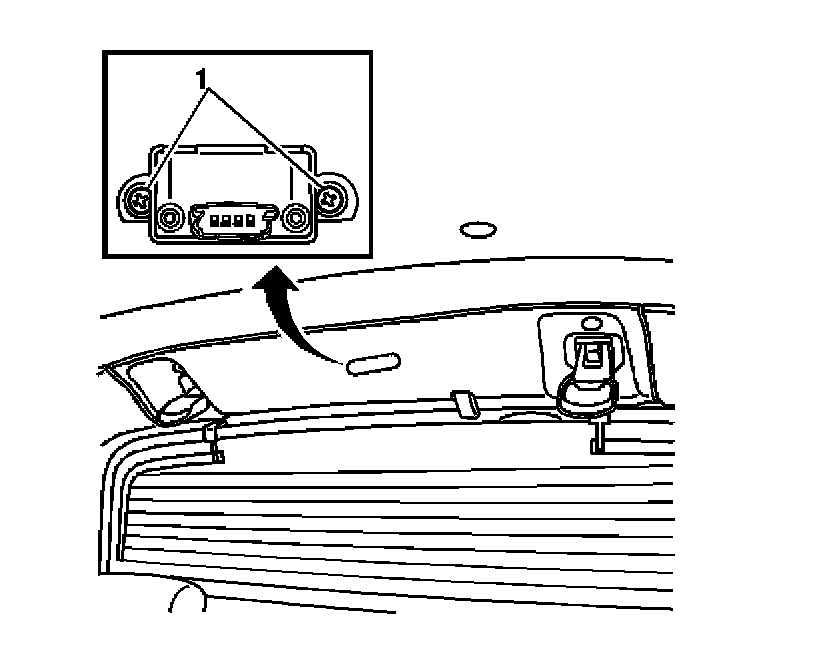

2. Remove the 2 screws (1) retaining the information telltale.
3. Remove the information telltale from the garnish molding.

INSTALLATION PROCEDURE




1. Install the information telltale to the garnish molding.
2. Install the 2 retaining screws (1).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the 2 screws to 2 N.m (18 lb in).

3. Install the garnish molding.
