Canister Purge Control Valve: Service and Repair

EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE REPLACEMENT







REMOVAL PROCEDURE
1. Remove the engine sight shield.

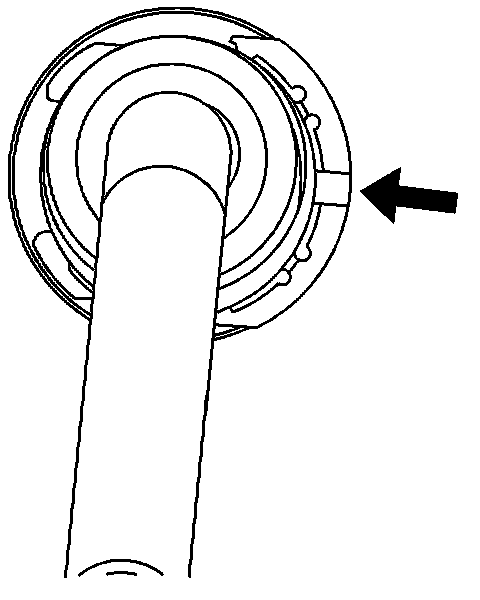

2. Remove the evaporative emission (EVAP) tube from the purge solenoid, perform the following:
- Push the large size white retainer portion in.
- Push down, while pulling up slightly in order the disengage the tube.

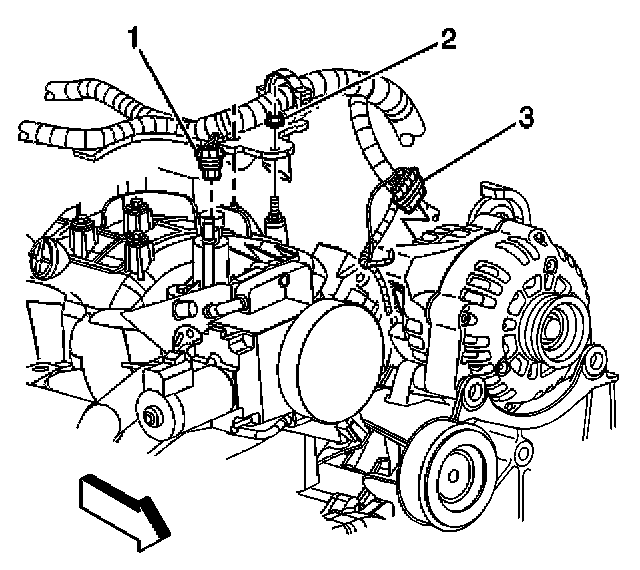

3. Disconnect the EVAP purge solenoid electrical connector (1).







4. Remove the EVAP purge solenoid bolt (2).

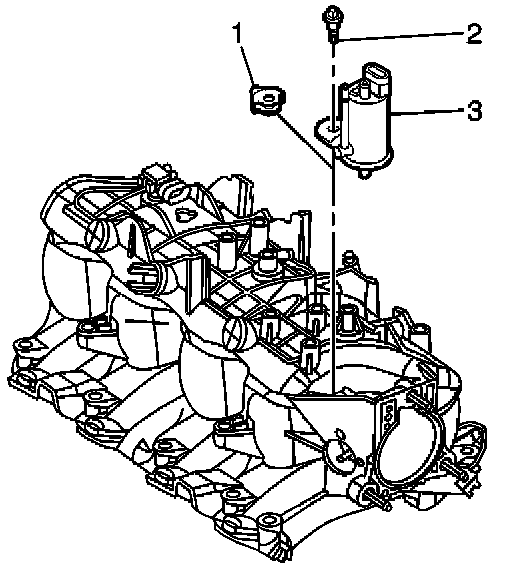

5. Remove the EVAP purge solenoid (3) and insulator (1).







INSTALLATION PROCEDURE
1. Install the insulator (1) onto the EVAP canister purge solenoid (3).
2. Install the EVAP canister purge solenoid (3).

NOTE: Refer to Fastener Notice in Service Precautions Fastener Notice.

3. Install the EVAP canister purge solenoid bolt (2).

Tighten
Tighten the bolt to ...........................10.5 N.m (93 lb in).

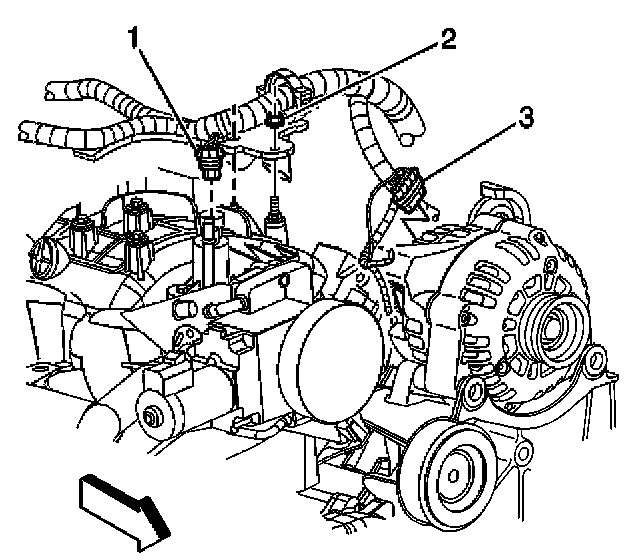

4. Connect the EVAP purge solenoid electrical connector (1).







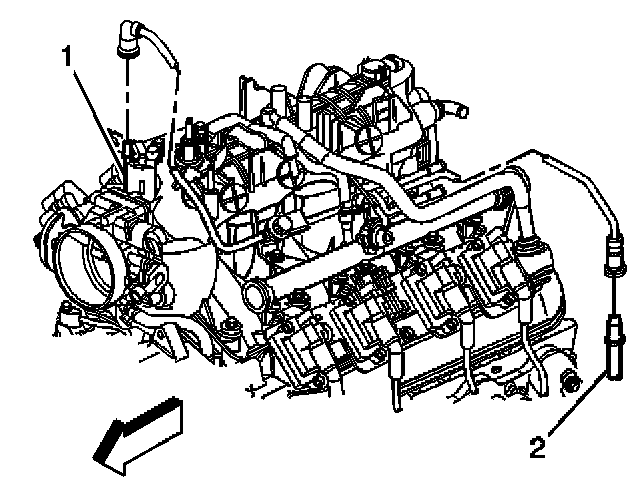

5. Install the EVAP tube to the purge solenoid (1).
6. Install the engine sight shield.
