Chevy Truck
>>
2003
>>
Avalanche 1500 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Courtesy Lamp
>>
Console Lamp
Console Lamp

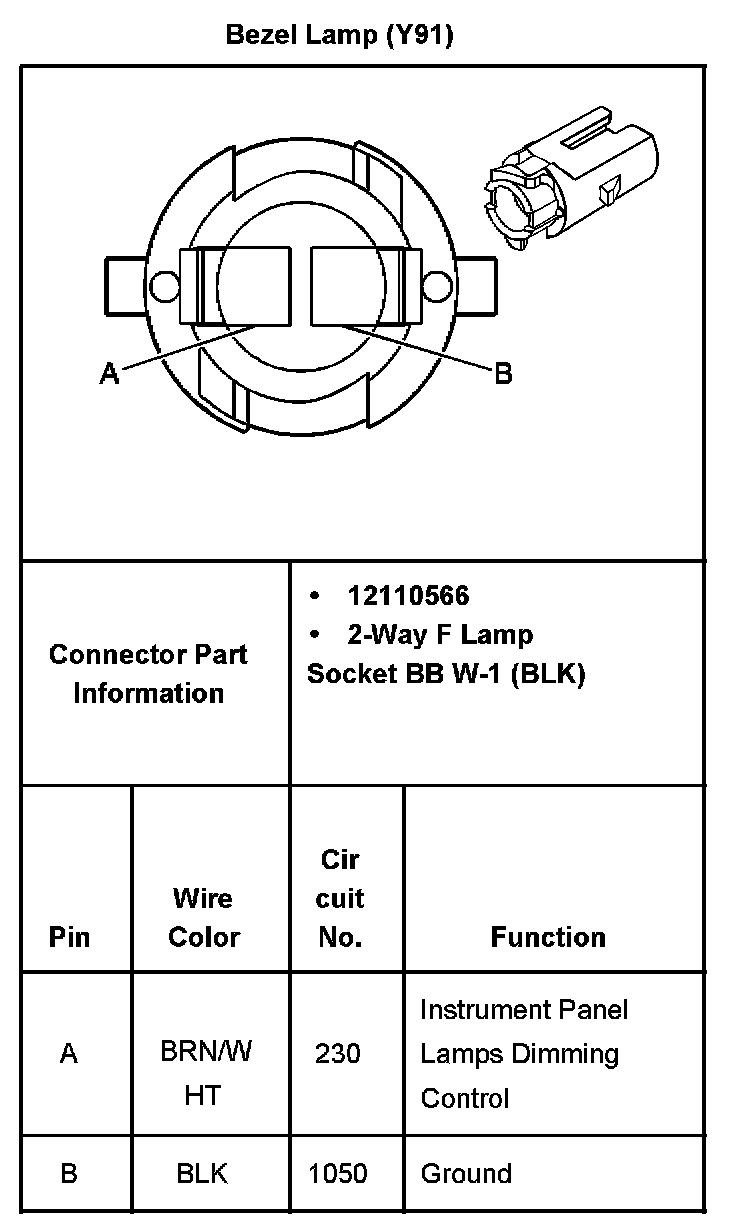

Bezel Lamp (Y91):
